auto-cutting woodworking machinery supplier top-brand for bulk production

Quick Details

Condition:New
Place of Origin:Guangdong, China (Mainland)
Model Number:NE550
After-sales Service Provided:Engineers available to service machinery overseas
Touching control screen:Delta
PLC&Fenquency:Delta
pneumatic component:Korean imported pneumatc device
End-trimming:American "Parker"
trimming motor:Italy "Teknomotor" high speed motor
low voltage apparatus:Schneider
tracking wire:Germany wire
pathway:extra heavy
working voltage:380V/50HZ/3 phase
heat-up time:20 minutes

Packaging & Delivery

Packaging Details:	standard export packing/as you require

auto-cutting woodworking machinery supplier top-brand for bulk production-1

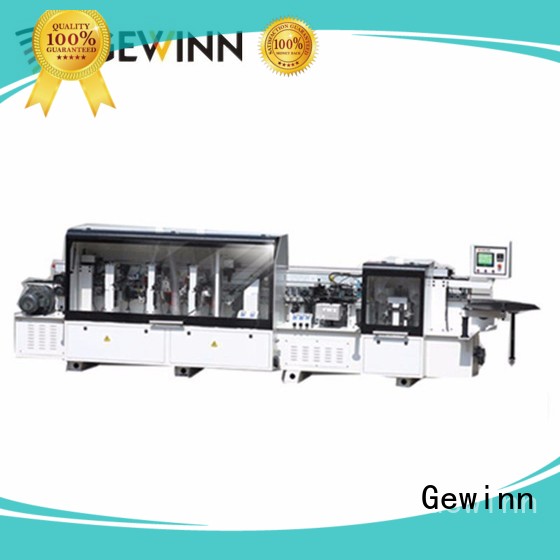

This model of edge banding machine include Pre-milling. Edge banding. End-trimming. Rough trimming. Profile trimming. Scraper. Buffing these process. make sure the wood pieces can be processed perfectly.

auto-cutting woodworking machinery supplier top-brand for bulk production-2

Equipment Details

1."Delta" PLC system control and HMI control box with "Delta" toucing screen. easy to operate.

auto-cutting woodworking machinery supplier top-brand for bulk production-3

2.Double layers feeding table. prevent the heat from the glue box effectively.

5.5L gluing box and special paint coat. shorten the melting time.

auto-cutting woodworking machinery supplier top-brand for bulk production-5

3.Korean pneumatic device. make sure the machine can work under any weather.

auto-cutting woodworking machinery supplier top-brand for bulk production-6

4.American "Parker" End-trimming unit and Germany wire. assure precisous cutting and the edge banding machine stable working for long time.

auto-cutting woodworking machinery supplier top-brand for bulk production-7

auto-cutting woodworking machinery supplier top-brand for bulk production-8

5. Rough and Profile trimming units are individually controlled by Italy “Teknomotor”

high speed motors and micrometric adjustment with Germen “SIKO” numerical digital

read-out. which ensure the edge banding machine precise trimming effect and easy adjusting.

auto-cutting woodworking machinery supplier top-brand for bulk production-9

Optional device

1.Corner Rounding device. individually controlled by Italy "Teknomotor" high speed motor

auto-cutting woodworking machinery supplier top-brand for bulk production-10

2.Optional Atomizing unit. prevent the hot melting glue remaining on the board.

auto-cutting woodworking machinery supplier top-brand for bulk production-11

Technical Parameter

Min workpiece width	60mm
Min workpiece length	100mm
workpiece thickness	10-60mm
Edge Height	15-65mm
Edge thickness	0.4-3mm
Conveyar speed	12-16-20m/min
Total power	14.7KW
Compressed Air Pressure	6.5kg/cm3
Total weight	1950kg
Over size	5400x1000x1600mm

auto-cutting woodworking machinery supplier top-brand for bulk production-12

auto-cutting woodworking machinery supplier top-brand for bulk production-13

Application

auto-cutting woodworking machinery supplier top-brand for bulk production-14

auto-cutting woodworking machinery supplier top-brand for bulk production-15

Company Features
1. It takes a lot of efforts for Gewinn to be the leading woodworking machinery supplier supplier.
2. Processed by our experienced technicians, woodworking equipment are qualified with good stability.
3. We plan to become a global woodworking machinery supplier exporter. Please contact. We adhere to the business philosophy of quality and innovation for our branded Products. Please contact.

k******r

Gewinn woodworking machinery supplier is professionally designed. Its design includes material design, system design, mechanical design and component structure design. We make products according to customer's own drawing design

f******n

The components or parts used in Gewinn woodworking machines for sale are required to pass relevant requirements. They will be inspected or tested for strength, hardness, durability, and other mechanical properties using different testing methods. Improving the quality of products and wining the market are our ultimate goal

u******i

Gewinn woodworking machinery supplier goes through a complete design cycle. It includes drawing up specifications, conception&architecture of the mechanism, design and simulation of behavior with static, dynamic, thermal, etc. Hanway has gained utility model patent certificate for the innovation of products

s******a

Materials used for Gewinn woodworking machines for sale has been tested. The tests include toughness or brittleness testing, hardness testing, tensile testing, etc. We will be responsible for providing the competitive high quality products with reasonable price

h******j

During the design stage, Gewinn woodworking machines for sale is exclusively designed adopting the most advanced technologies that are extensively applied in mechanical industry, such as energy-saving technology. Our staff will promptly give our response to customers

s******y

This product has an outstanding quality that exceeds industry standards. We make products according to customer's own drawing design
