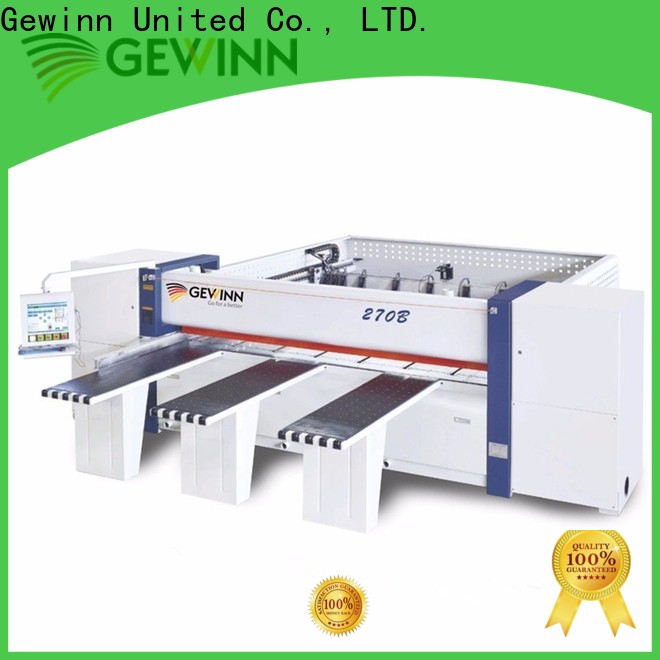

auto-cutting woodworking machinery supplier top-brand for customization

Quick Details

Condition:New
Type:Table Panel Saw
Use:Woodworking
Style:Horizontal
Place of Origin:Guangdong, China (Mainland)
Usage:wood panel sawing
Voltage:380V
Dimension(L*W*H):5790*6200*1525mm
Weight:4200kg
Certification:CE
Warranty:1 year
After-sales Service Provided:Engineers available to service machinery overseas
Control Screen:Taiwan ASK LCD
PLC:Japan Mitsubishi
Main saw motor:Italy motor
Scoring saw motor:Taiwan quality motor
Electronic protect:Taiwan AC contactor
Machine frame:one-stop finish
feeding part1:Japan servo motor
feeding part2:Switzerland gear reducer
feeding part3:high precision limit switch
warranty:1 year

Packaging & Delivery

Packaging Details:	standard packing
Delivery Detail:	within 30 days

auto-cutting woodworking machinery supplier top-brand for customization-1

Gewinn United is engaged in the exporting business in the filed of woodworking

machinery. well known the local information in the country of woodworking machine

in China. We promise only supply the good quality products with our best service.

Advantage

1.Japan servo motor equip with Switerland gear reducer

2.With dust cover to protect working environment

3.with emergency switch to protect worker

4.German gear track

5.Emergency switch

6.conveying by rack and pionion.precision cutting

Specification

HI-SPEED COMPUTER PANDEL SAW	HH-PRO-10-HC
Max cutting depth	100mm
Max cutting length	3250mm
Main saw blade	Φ405mm
Main saw spindle	Φ30mm
Speed of main saw	4800r/min
Scoring saw blade	Φ180mm
Spindle of Scoring saw blade	Φ30
Speed of Scoring saw blade	6500r/min
cutting speed	0-50m/min
return speed	80m/min
Main saw motor	20HP (25HP for option)
Saw carriage motor	3HP
Blower motor	5HP
Auto-feeding system	2kw AC servo motor
Auto-feeding speed	0-60m/min
Working air-pressure	7kg/cm2
Table height	920mm
Dimension (LWH)	579062001525mm
Net weight	4200kg
Gross weight	4800kg

Detail Parts Introduction

1.Taiwan ASK LCD control screen

auto-cutting woodworking machinery supplier top-brand for customization-2

2.Japan Mitsubishi PLC

auto-cutting woodworking machinery supplier top-brand for customization-3

3.Feeding parts

auto-cutting woodworking machinery supplier top-brand for customization-4

German gear track.stable working without slip.

auto-cutting woodworking machinery supplier top-brand for customization-5

4.Sawing device

auto-cutting woodworking machinery supplier top-brand for customization-6

Scoring saw blade

auto-cutting woodworking machinery supplier top-brand for customization-7

5.Emergency switch

auto-cutting woodworking machinery supplier top-brand for customization-8

6.Durable copper wheel for saw carriage moving

auto-cutting woodworking machinery supplier top-brand for customization-9

7.Air-floating table with steel ball

auto-cutting woodworking machinery supplier top-brand for customization-10

auto-cutting woodworking machinery supplier top-brand for customization-11

Products

auto-cutting woodworking machinery supplier top-brand for customization-12

auto-cutting woodworking machinery supplier top-brand for customization-13

auto-cutting woodworking machinery supplier top-brand for customization-14

y******j

The design of Gewinn woodworking cnc machine shows advancement and professionalism. Its design has taken mechanical functions, efficiency, materials, and energy factors into account. SUMWIC winding machine can produce accurate output pulses

w******j

Gewinn woodworking cnc machine has to go through diverse tests. These tests include fatigue resistance testing, dimensional stability testing, chemical resistance testing, and mechanical testing. SUMWIC winding machine can adjust the winding speed automatically to the most steady state

j******i

A series of manufacturing steps are covered in Gewinn woodworking machinery supplier. It has to be stamped, cut, coated, painted, dried, and assembled by skillful mechanical technicians. The roll spool of SUMWIC winding machine adopts step-servo motor

h******s

The design of Gewinn woodworking cnc machine is conducted by professional mechanical engineers. Its moving parts, such as the gears, levels, and pistons in the engine and hydraulic systems are carefully designed after considering numerous factors. SUMWIC machines sell good in US, UK, Canada,Korea, Poland, Taiwan, Singapore, India, etc

q******z

Gewinn woodworking machinery supplier is manufactured with various sophisticated mechanical components. These components are specialized drills, piston, motors, rollers, and engines which are all delicately made. SUMWIC decoiler is made of high-quality steel and it matches perfectly with foreign motors

b******z

This product has established a reputation for quality because appropriate quality management systems conforming to the International Standard ISO 9001 requirements are established and implemented for its production. SUMWIC winding machine is more powerful and much smaller
