banding wood edge band equipments fast delivery wood working

Quick Details

Condition:New
Place of Origin:Guangdong, China (Mainland)
Model Number:NE500
After-sales Service Provided:Engineers available to service machinery overseas
Touching control screen:Delta
PLC&Fenquency:Delta
pneumatic component:Korean imported pneumatc device
End-trimming:American "Parker"
trimming motor:High speed motor with 2 years warranty
low voltage apparatus:Schneider
tracking wire:Germany wire
pathway:extra heavy
working voltage:380V/50HZ/3 phase
heat-up time:20 minutes

Packaing & Delivery

Packaging Details:	standard export packing/as you require
Delivery Detail:	20-30 days

banding wood edge band equipments fast delivery wood working-1

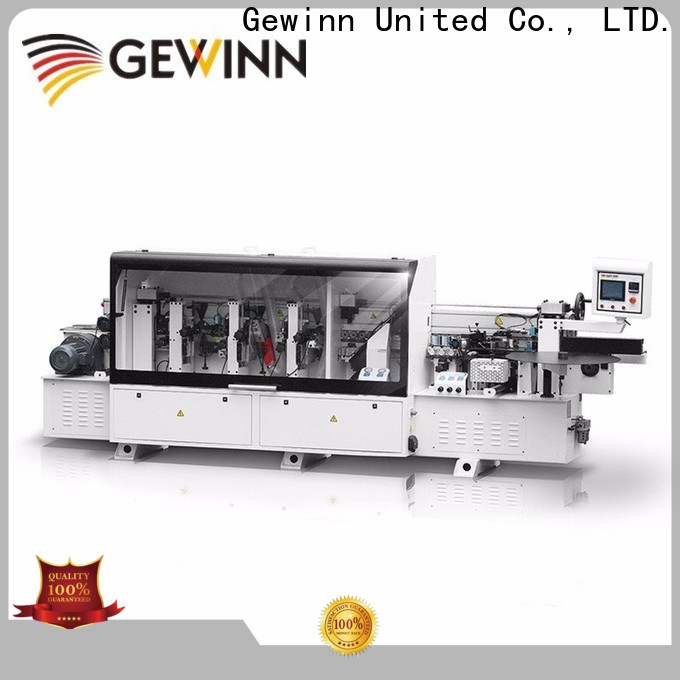

Automatic edge banding machine

This Automatic edge banding machine is can band PVC, Veneer tape.Suitable for home use cabinet, closet, drawer and office furniture manufacturing. Precise trimming unit is helpful to make smooth product.

Operation

banding wood edge band equipments fast delivery wood working-2 Heating Feeding End trimming

banding wood edge band equipments fast delivery wood working-3

Rough&Fine trimming Scrape Buffing

Machine companent

banding wood edge band equipments fast delivery wood working-4

Korean pneumatic unit Schneider low-voltage protecting Durable Germany wire

banding wood edge band equipments fast delivery wood working-5

Quality high speed motor Germany “SIKO” “DELTA” PLC

Machine Parameter

Specification		NE550R	NE500R	NE400R	NE550	NE450	NE500	NE400	NE300	NE200
Min. Effectiven Workpiece Width		60mm
Min. Workpiece Length		150mm			100mm
Min. Workpiece Size (All Size)		100×150mm			100×100mm
Workpiece Thickness		10-60mm
Edge Height		15-65mm
Edge Thickness		0.4~3mm
Conveyor Speed		12~16~20 m/Min
Total Power		17KW	11.5KW	10KW	14.7KW	12.5KW	10.5KW	8KW	8KW	7.3KW
Compressed Air Pressure		6.5kg/cm³
Voltage		380V/50Hz/3phase
Total Weight		2450KG	2150KG	1900KG	1950KG	1800KG	1650KG	1500KG	1350KG	1150KG
Overall Size	L	6610mm	5660mm	5210mm	5400mm	5000mm	4500mm	4000mm	3550mm	2910mm
	W X H	1000×1600mm								1000×1420mm

Application

banding wood edge band equipments fast delivery wood working-6

banding wood edge band equipments fast delivery wood working-7

banding wood edge band equipments fast delivery wood working-8

banding wood edge band equipments fast delivery wood working-9

Video

Customer Using

banding wood edge band equipments fast delivery wood working-10

banding wood edge band equipments fast delivery wood working-11

banding wood edge band equipments fast delivery wood working-12

Related machine

banding wood edge band equipments fast delivery wood working-13

Panel saw CNC drilling machine

f******r

Gewinn wood edge band equipment is professionally designed. Its design includes material design, system design, mechanical design and component structure design. Hanway has been specialized in aluminum, zinc and brass die casting for over 13 years

v******b

The components or parts used in Gewinn wood edge band equipments are required to pass relevant requirements. They will be inspected or tested for strength, hardness, durability, and other mechanical properties using different testing methods. Our products have good performance like waterproof which ensures the lifespan of the products

r******z

Gewinn wood edge band equipment goes through a complete design cycle. It includes drawing up specifications, conception&architecture of the mechanism, design and simulation of behavior with static, dynamic, thermal, etc. We will be responsible for providing the competitive high quality products with reasonable price

p******s

Materials used for Gewinn wood edge band equipments has been tested. The tests include toughness or brittleness testing, hardness testing, tensile testing, etc. Hanway follows the principle of customer first

p******r

During the design stage, Gewinn wood edge band equipment is exclusively designed adopting the most advanced technologies that are extensively applied in mechanical industry, such as energy-saving technology. We are committed to improving our core value to be more competitive in the market

l******u

This product has an outstanding quality that exceeds industry standards. We are committed to improving our core value to be more competitive in the market
