Your reliable woodworking machinery supplier.

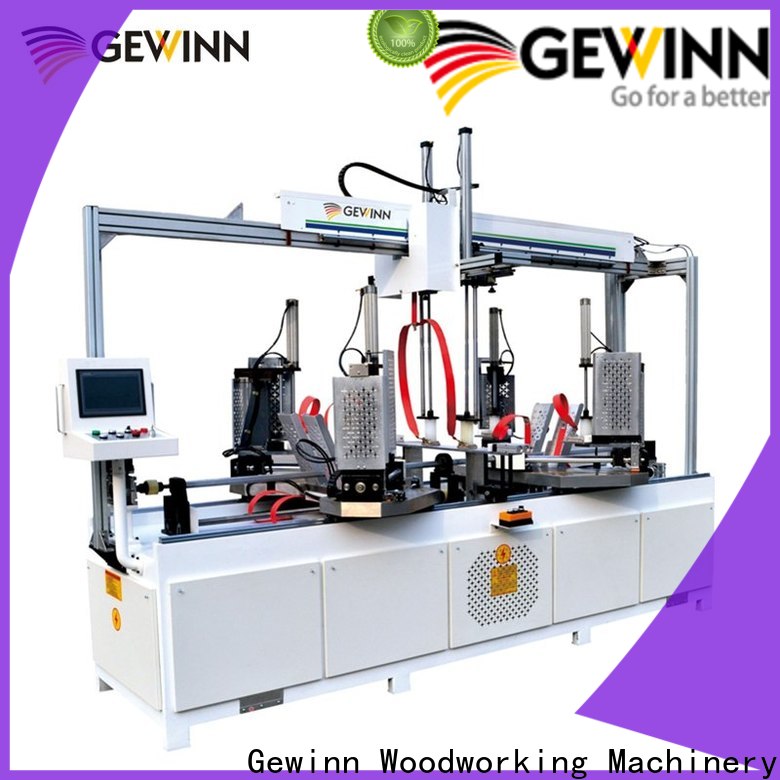

This HF wooden frame assembling machine is suitable for MDF, HDF with wrapping surface ,to achieve fast frame assembling with or without tenon,such as etc.
1.High efficiency, glue can be solidified in 2-10 seconds，can be operate on assembling line.
2.Labor saving, save labor cost from no fixtures operating, loading and checking.
3.High quality, better assembling effect under HF heating and pressing, no staple gun is needed.
4.Low power cost, assemble one frame cost about 0.003-0.04 kw/h.
About machine
1.Heavy duty machine frame can reduce machine shake, ensure machine with stable working
High strength steel
reinforcement structure
2.Motor work with screw rod as machine transmission system, ensure product with precise assembly.
3.Machine with PLC control, worker can finish operation on control panel easily.
4.Optional guide rail with good stability, improve machine assembling precision, product error within 0.015mm.
5.Optional piano type pressing unit with separated pressing heads, improve product assembling planeness.
About our factory
High precision processing equipment, ensure machine with stable and precise working
Plasma cutting machine |
Machine hand welding |
Vertical drilling equipment |
 |  |
 |  |  |
Type | CGZK-1200×800 | CGZK-2000×800 | CGZK-2800×800 | CGZK-2800×1000 | CGZK-3400×1200 |
Max.working size(mm) | 1200×800 | 2000×800 | 2800×800 | 2800×1000 | 3400×1200 |
Min.working size(mm) | 80×80 | 130×130 | 130×130 | 130×130 | 200×200 |
Pressurizing mode | Precision lead screw | ||||
Overall dimension(mm) | 2000(L)×1180(W)×1750(H) | 2760(L)×1180(W)×1750(H) | 3560(L)×1180(W)×1750(H) | 3560(L)×1380(W)×1750(H) | 4160(L)×1580(W)×1750(H) |
Weight(t) | 0.8 | 1.5 | 2 | 2.2 | 2.5 |
1.Ensure finished product in high precision, diagonals error within 0.5mm.
2.Key board pressing device,ensure assembled frame surface is in high smoothness.
3.Easy automatic control in touch scream for middle points assembling, while other needs manually assemble and adjust
