Your reliable woodworking machinery supplier.
Gewinn CNC Milling machine, from residual wood to high class product.
CNC Milling Machien with advanced CNC control systems, CNC profile milling machines can precisely control the tool paths and machining parameters. The machining accuracy can reach micron levels, ensuring that each part meets the strict dimensional and surface quality requirements.

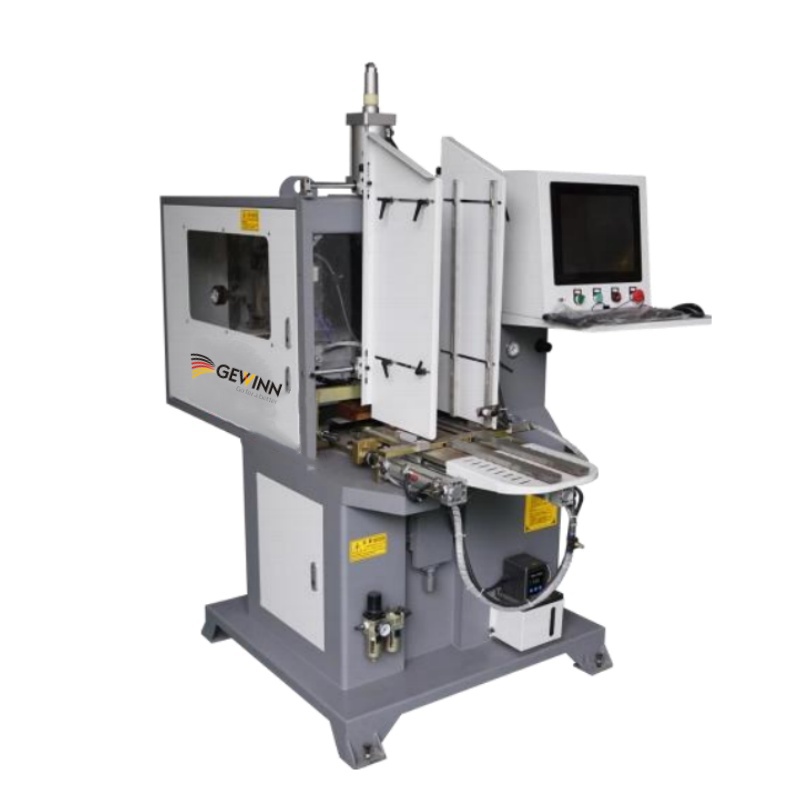

CNC-7203 CNC Milling Machine (with high-speed motor).

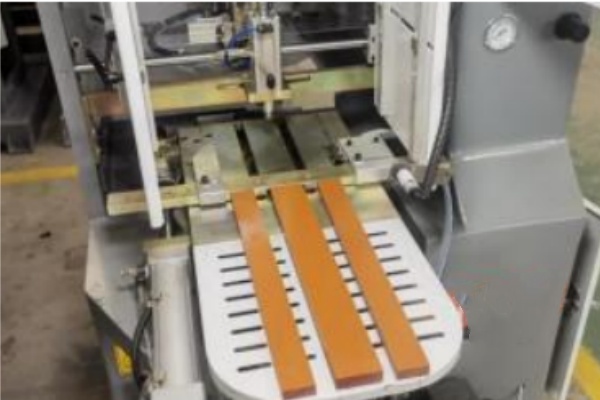

--Flexible feeding platform, automatic correction of slight errors in raw material size.
Type | CNC-7203 |
Working pressure | 0.6-0.8Mpa |
Milling cutter motor power | 9.5kw |
Rotating motor power | 1KW servo motor |
Cutter shaft moving power | 0.75 KW |
Spindle speed | 18000r/min |
Tool shank diameter | Ø12.7/20mm |
Working diameter range | 30-300mm |
Working thickness range | 5-60mm |
Dust outlet diameter | Ø100mm*3 |
Working table size | 300*450mm |
Maximum milling rectangle | 10:1 |
Power | 11.25k |
Weight | 750kg |
Overall dimensions | 1300*1850*2000mm |

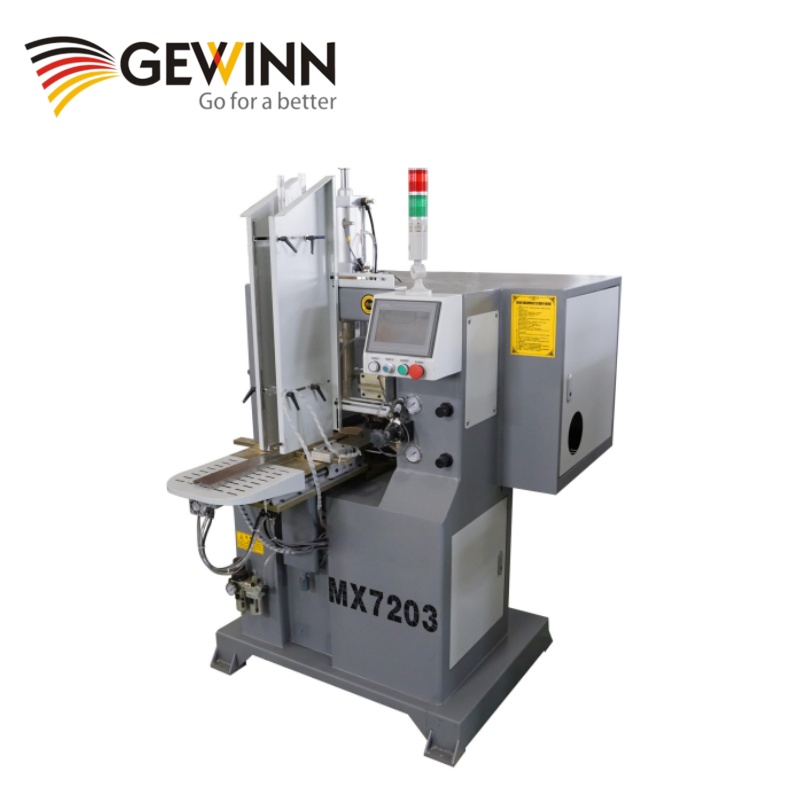

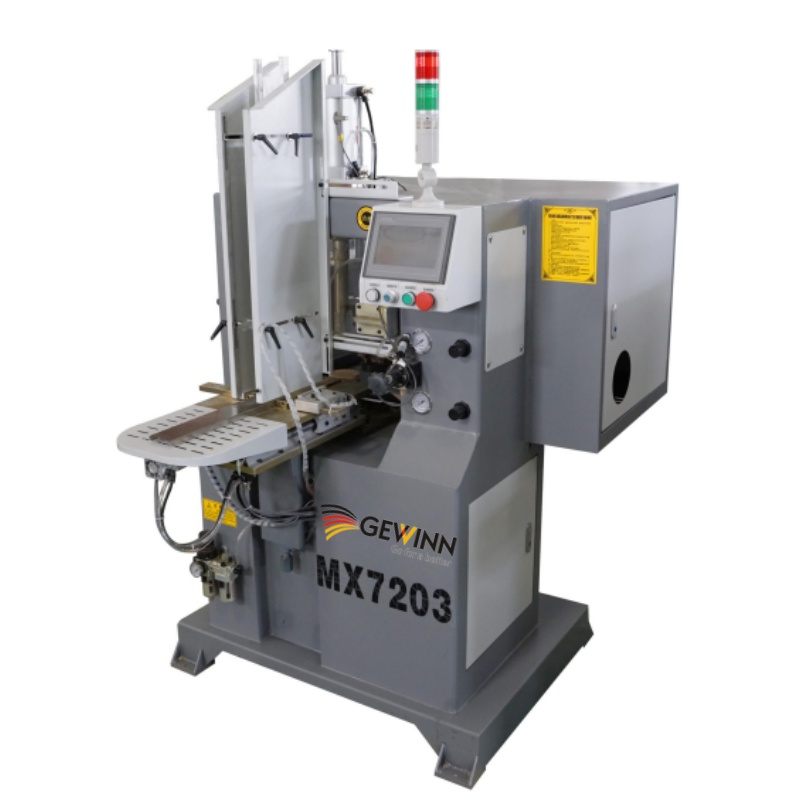

MX7203 CNC Milling Mchine
MX7203 CNC Milling Machine.

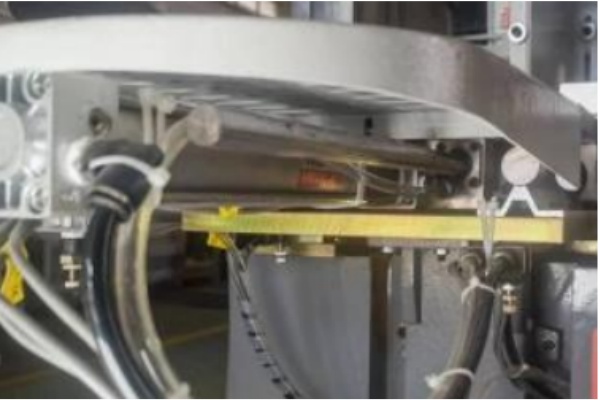

--Double guide rails for precise feeding, and zero deviation for repeated positioning of parallelism.
Type | MX7203 |
Working pressure | 0.6-0.8Mpa |
Milling cutter motor power | 5.5kw |
Rotating motor power | 1KW servo motor |
Spindle speed | 12000r/min |
Spindle diameter | Ø25.5/30mm |
Working diameter range | 30-200mm |
Working thickness range | 5-70mm |
Dust outlet diameter | Ø100mm*3 |
Power | 6.5k |
Weight | 660kg |
Overall dimensions | 1200*1200*1760mm |

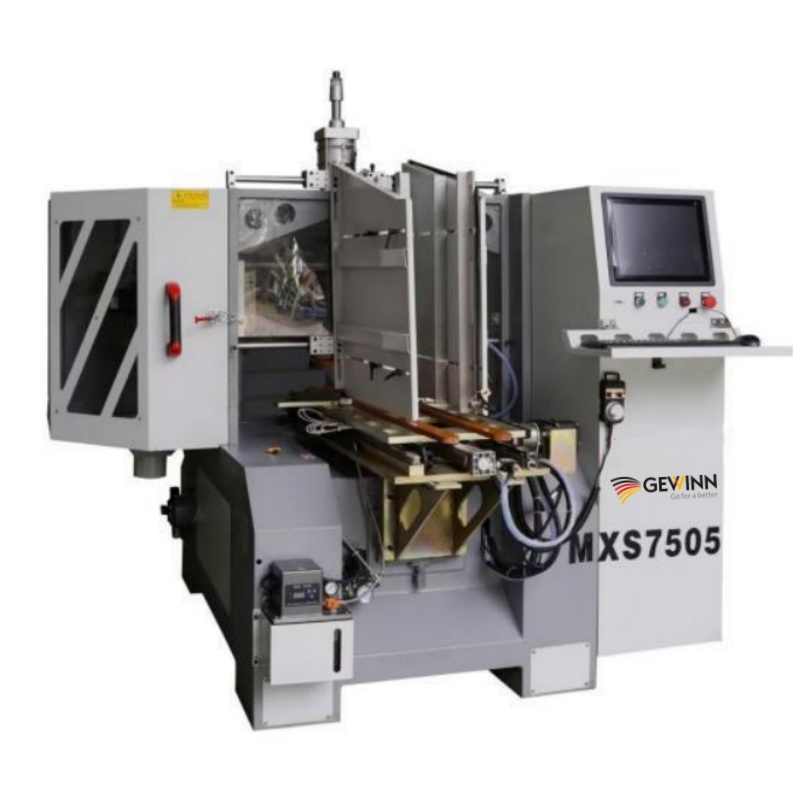

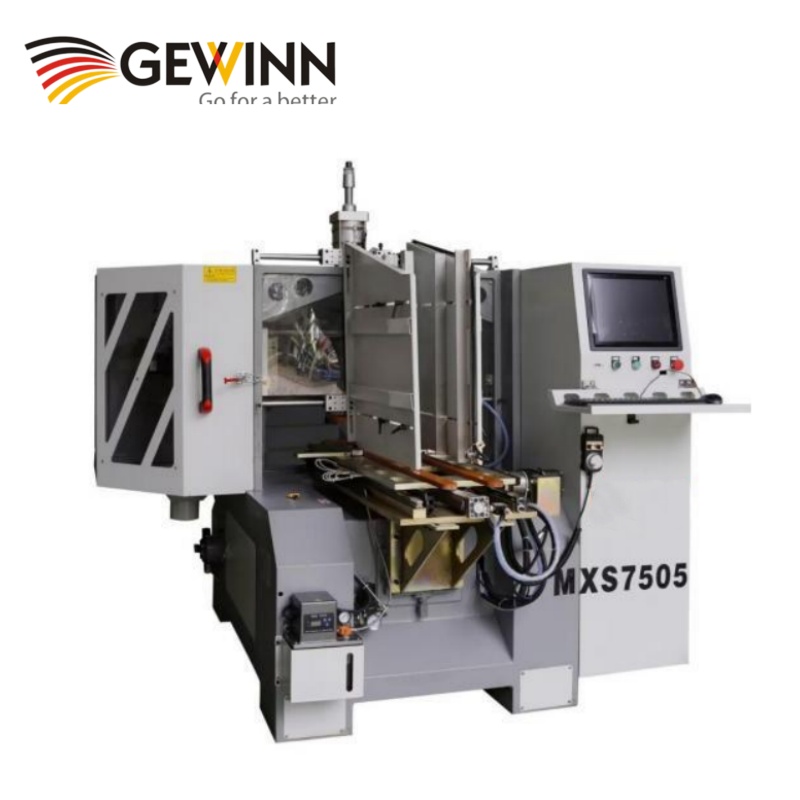

MXS7505 CNC Milling Mchine
MXS7505 CNC Milling Machine.

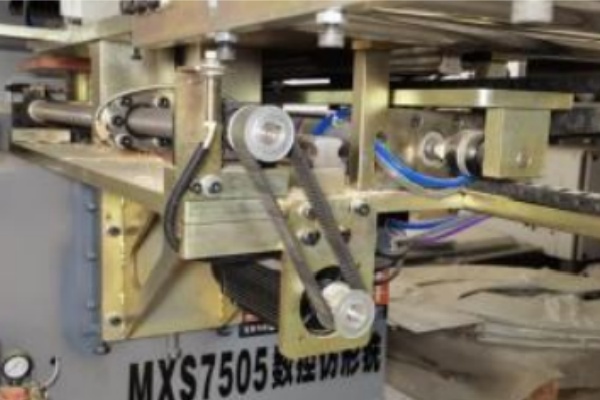

--Flexible feeding platform, automatic correction of slight error of wool size, driven by high-performance servo motor, synchronous with direct screw.
Type | MXS7505 |
Working pressure | 0.6-0.8Mpa |
Milling cutter motor power | 9.5kw |
Rotating motor power | 1.5KW servo motor |
Cutter shaft moving power | 0.75KW servo motor |
Tool shaft lifting power | 0.75KW servo motor with brake |
Spindle speed | 18000r/min |
Tool shank diameter | Ø12.7/20mm |
Working diameter range | 160-550mm |
Working thickness range | 60mm |
Dust outlet diameter | Ø100mm*5 |
Working table size | 300*450mm |
Max milling rectangle | 10:1 |
Power | 12.5KW |
Weight | 1200kg |
Overall dimensions | 1700*2800*2000mm |

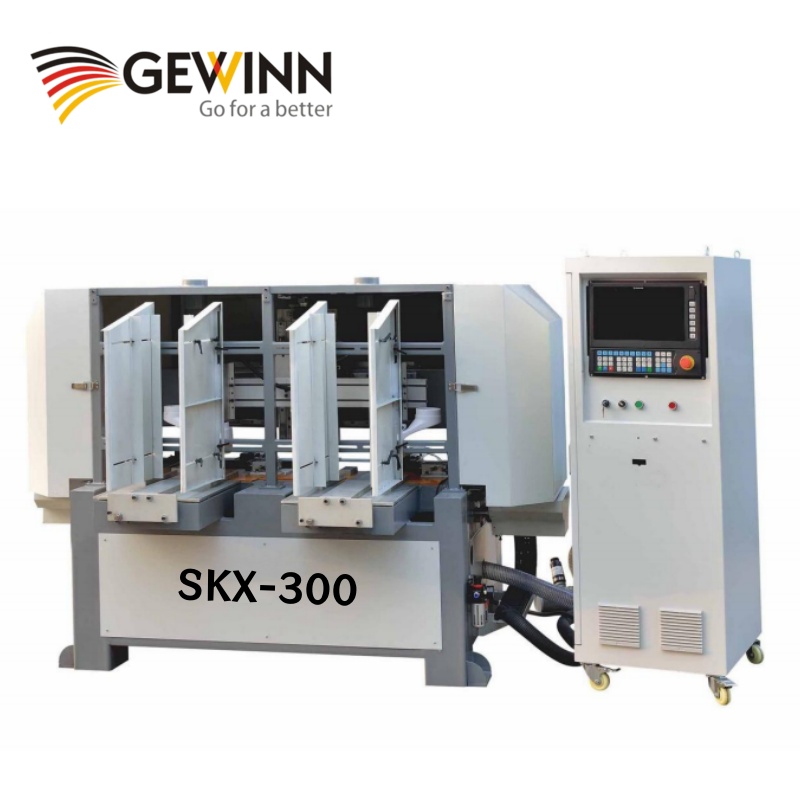

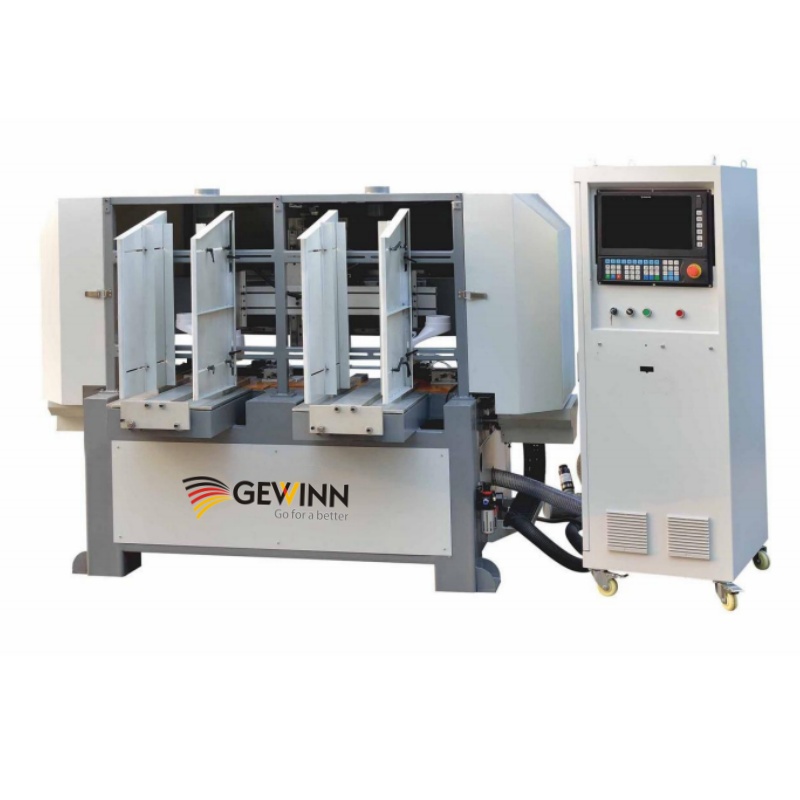

SKX-300 CNC Milling Mchine
SKX-300 CNC Milling Machine.

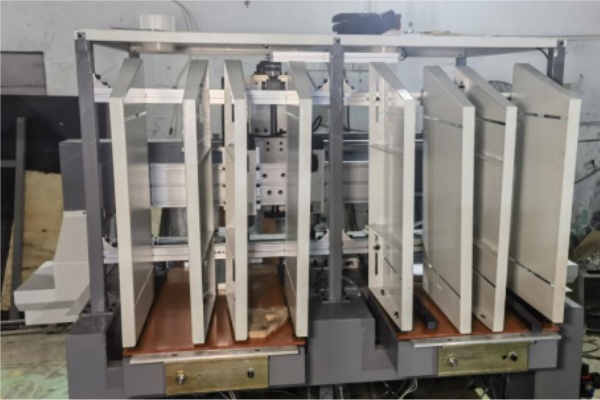

--The feeding standard is a double-station and double-bin feeding platform, which greatly improves the processing efficiency.
Type | SKX-300 |
Working pressure | 0.6-0.8Mpa |
Milling cutter motor power | 6kw*2 |
X/Y/Z-axis motor power | 1/1/1KW |
Feeding station | 2(4 can be selected) |
Max working speed | 80m/min |
Spindle speed | 18000r/min |
Tool shank diameter | Ø12.7/20mm |
Working diameter range | 30-300mm |
Working depth range | 60mm |
Dust outlet diameter | Ø100mm*2 |
Power | 15KW |
Weight | 1200kg |
Overall dimensions | 2200*1800*1600mm |
