| Gewinn

Quick Details

Condition:New
Spindle Speed:6750r.p.m
Air Pressure:6-8bar
Max. Working Width:150mm
Max Working Height:150mm
Place of Origin:Guangdong, China (Mainland)
Brand Name:Gewinn
Model Number:FJL150-8A
Voltage:380V/50Hz
Power(W):61kw
Warranty:12 Months
After-sales Service Provided:Engineers available to service machinery overseas
Working:Full automatic
Shaper:Auto shaping with gluing
Max pressing length:6000mm
Max working width:450mm
Working height:20-150mm
Max pressing width:30-150mm
Infeed length:150-900mm
Sunction:9000m3/h

Packaging & Delivery

Packaging Details:	Plastic film packing
Delivery Detail:	30-35 working days

Gewinn-1

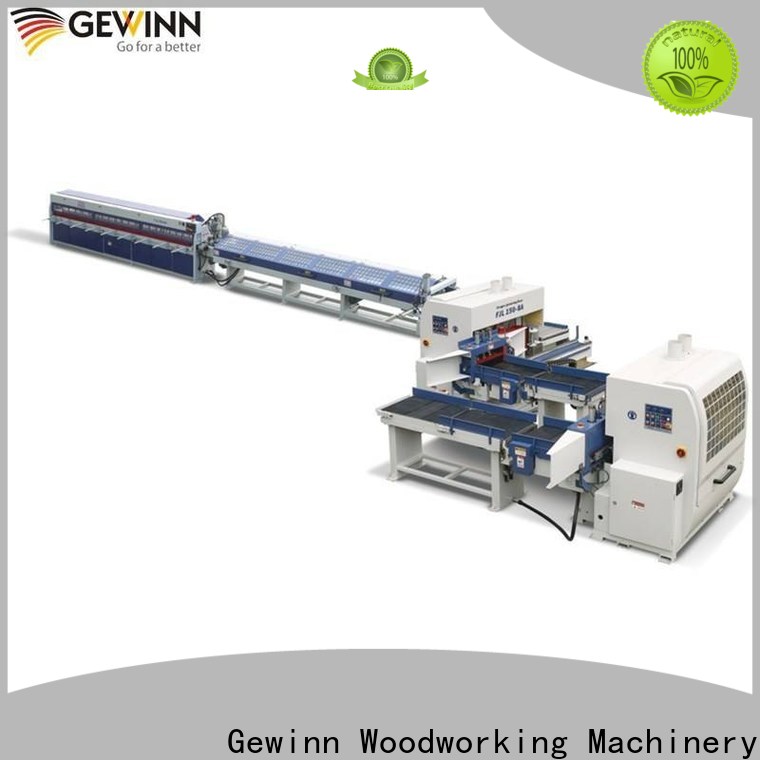

Finger joint machine is suitable for wooden stick, wooden panel manufacturing.Can combine short and waste wood to be strong long stick.

Gewinn-2

Parameter

Model	FJL150-8A
Infeed length	150-900mm
Sharping thickness	20-150mm
Max working width	590mm
Pressing thickness	20-80mm
Pressing width	30-150mm
Spindle diameter	Ø50mm
Spindle speed	6750r/min
Hogger spindle diameter	Ø30mm
Hogger speed	2840r/min
Max pressing length	6040mm
Max hydraulic pressing	7500kg
Shaper spindle power	15kw x2
Hogger power	4kw x2
Scoring saw power	0.75kw x3
Hydraulic pressing power	4kw
Pressing saw blade	4kw
Total power	61kw
Air pressure	6-8bar
Suction	9000m3/h
Standard voltage	380V/50Hz

Applicati

Gewinn-3

Gewinn-4

Gewinn-5

Gewinn-6

Gewinn-7

Gewinn-8

i******c

Gewinn is professionally designed. Its design includes material design, system design, mechanical design and component structure design. More CNC are applied in the secondary processing to meet high accuracy demands

y******f

The components or parts used in Gewinn are required to pass relevant requirements. They will be inspected or tested for strength, hardness, durability, and other mechanical properties using different testing methods. We are committed to improving our core value to be more competitive in the market

f******g

Gewinn goes through a complete design cycle. It includes drawing up specifications, conception&architecture of the mechanism, design and simulation of behavior with static, dynamic, thermal, etc. Quality first is very important for Hanway

o******p

Materials used for Gewinn has been tested. The tests include toughness or brittleness testing, hardness testing, tensile testing, etc. Creating an atmosphere of trust and recognition to encourage employees is also one of our missions

m******j

During the design stage, Gewinn is exclusively designed adopting the most advanced technologies that are extensively applied in mechanical industry, such as energy-saving technology. More CNC are applied in the secondary processing to meet high accuracy demands

q******o

This product has an outstanding quality that exceeds industry standards. Quality first is very important for Hanway
