Condition:New
Place of Origin:Hebei, China (Mainland)
Brand Name:CANGAO
Model Number:CGPB-50PZ / CGPB-61PZ / CGPB-70PZ
After-sales Service Provided:Engineers available to service machinery overseas
finger joint board joining /5-80mm thickness board

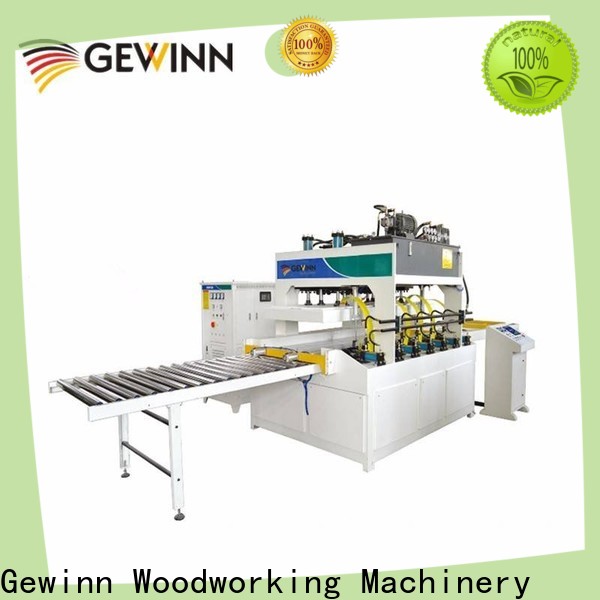

High Frequency Wood Board Jointing Machine
(Vertical Lifting) (with feeding & discharging device)
( 5-80mm thickness board )
Model No.: CGPB-50PZ / CGPB-61PZ /CGPB-70PZ
This plane board jointing machine is the updated version of high frequency board jointing machine, with upper plate adopts vertical lifting and installs the synchronous system, so as to achieving higher planeness, saving 0.3mm plane thickness .
Working Procedure
Gluing → Infeeding → Vertical Press → Horizontal Press
Heating → Vertical&Horizontal Press Closing → End product Pushing
Model Details of plane board jointing machine
Technique Data of plane board jointing machine
Type | CGPB-50PZ | CGPB- 61PZ | CGPB-70PZ | CGPB-120PZ |
Workbench size (mm) | 2500×1300 | 2500×1300 | 2500×1300 | 2500×1300 |
Jointing thickness (mm) | 6-50 | 6-80 | 8-80 | 8-80 |
Vertical pressure (T) | 28 | 28 | 28 | 42 |
Horizontal pressure (T) | 22 | 33 | 42 | 78 |
Overall size (mm) | 8700(L)×4400(W) ×2300(H) | 8700(L)×4400(W) ×2300(H) | 10200(L)x4400(W) x2300(H) | 18200(L)x5200(W) x2400(H) |
Weight (T) | 5.5 | 6.5 | 7.5 | 13 |
Feeding | Auto | Auto | Auto | Auto |
Benefit you can count on :
1. High Timber Outturn : 5%-10% more on average compared to the general clamp carrier
2. High Efficiency : 1-3 mins to finish one board , especially processing in winter much more significant
3. Energy Saving :15-30kw/h power consumption for 1cbm board jointing
4. Low Labor Cost :feeding & discharging device of belt-conveyer , adding palletizing and gluing system for option to get more efficient as well
5. Heavy Frame : Using large-scale machine tool to ensure its verticality
6. Easy Operation: Touch screen HML, with a built-in operation instruction which including installation, operation, repair, maintenance etc.
7. Safety :Adding high sensitive spark protection circuit and make separated cabinet for HF parts
8. Good components :assorting Taiwan pneumatic tools mostly
9. The thinnest board of jointing is 6mm at least, 80mm max thickness
Application :
It mainly apply to laminated wood, particle board,door panel jointing, and solid wood, door pocket, door line banding, or other wooden block gluing etc.
Other wooding models you could check below:
===============================================================================
Our Company
We are the woodworking machine expert -- Foshan Gewinn United, Welcome!
We are specialized in exporting good quality woodworking machines in Lunjiao Town,
models covers Edge Banding, Saw, Boring, CNC, Finger jointing line, High Frequency equipment , sanding machines and accessories etc.
Our Partner
Our Team
Why Gewinn ?
1. As the standing council unit of Lunjiao Government wooding machine association
2 . Cooperating with premium and reliable suppliers only
3 . Experienced team with considerate exporting and shipping service offering
4 . No additional profits price, suppliers pay to become our members
5. As the third party inspection
Gewinn aims to lower your risk instead of offering you the lowest price
Remark:
Payment: 100% in advance, 30% for deposit, balance before shipment.
Delivery time: 5-20 days after deposit received
Overseas Service/Training/Installation: Available
Inspection: Detailed report with photos to be provided before shipment
Warranty: 1 year under normal operation, except easy-damaged parts and electrical elements
12-hours online service: Available
OEM service: Accepted
Cost-benefit: Gewinn making you cost-expense saved and lower your risk with premium wooding machines only.
