| Gewinn

Quick Details

Condition:New
Spindle Speed:6750r.p.m
Air Pressure:6-8bar
Max. Working Width:150mm
Max Working Height:150mm
Place of Origin:Guangdong, China (Mainland)
Brand Name:Gewinn
Model Number:FJL150A-6
Voltage:380V/50Hz
Power(W):50kw
Warranty:12 Months
After-sales Service Provided:Engineers available to service machinery overseas
Working:Semi auto
Shaper:Auto shaping with gluing
Max pressing length:6000mm
Max working width:450mm
Working height:20-150mm
Max pressing width:30-150mm
Infeed length:150-900mm
Main spindle power:11kw
Hogger power:4kw
Sunction:9000m3/h

Packaging & Delivery

Packaging Details:	Plastic film packing

Gewinn-1

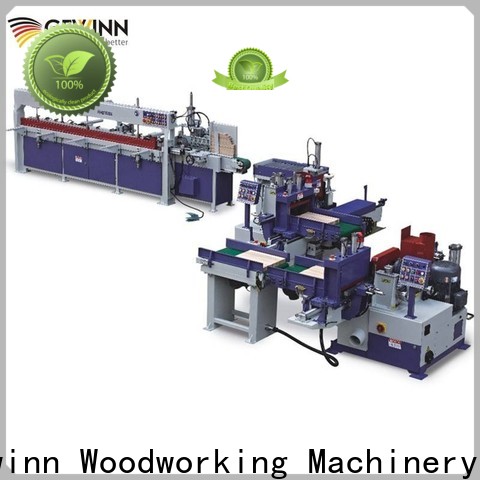

Semi-Auto finger joint line is the base way for wooden panel manufacturing. Users can

adjust the wood stick length according to your product required.

Parameter

Model	FJL150A
Infeed length	150-900mm
Sharping thickness	20-150mm
Max working width	450mm
Pressing thickness	20-80mm
Pressing width	30-150mm
Spindle diameter	Ø50mm
Spindle speed	6750r/min
Hogger spindle diameter	Ø30mm
Max pressing length	6000mm
Max pressing pressure	7500kg
Spindle motor	11kw x2
Hogger power	4kw x2
Scoring saw power	0.75kw x3
Conveyor power	0.75kw x4
Hydraulic pressing power	4kw
Pressing saw blade	4kw
Belt conveyor	0.75kw
Roller conveyor	0.75kw
Total power	44.75kw
Air pressure	6-8bar
Suction	9000m3/h
Standard voltage	380V/50Hz

Applicati

Gewinn-2

Gewinn-3

Gewinn-4

Gewinn-5 Gewinn-6

Gewinn-7
