Quick Details

Condition:New
Place of Origin:Hebei, China (Mainland)
Model Number:CGPB-50PZ / CGPB-61PZ / CGPB-70PZ
After-sales Service Provided:Engineers available to service machinery overseas

Product Description

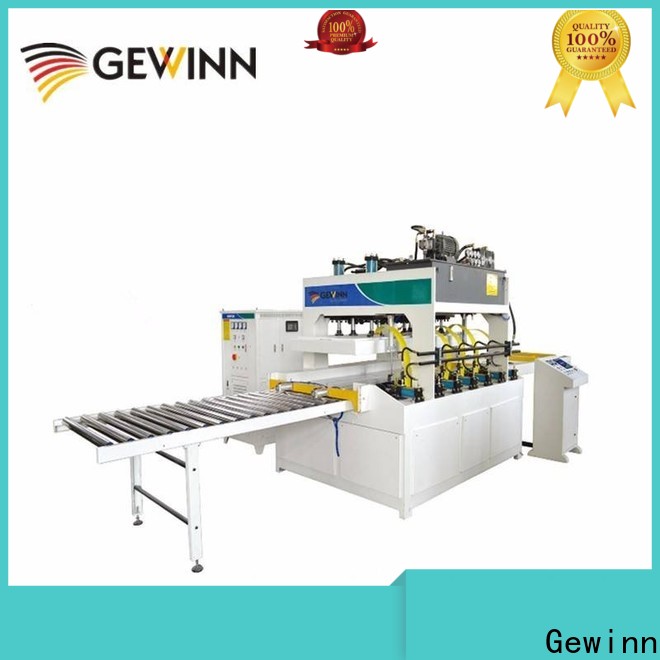

Radio Frequency Wood Laminating Machine/ Wood Board Jointing Machine

(Vertical Lifting) (with feeding & discharging device)

( 5-80mm thickness board )

Model No.: CGPB-50PZ / CGPB-61PZ /CGPB-70PZ

This plane board jointing machine is the updated version of high frequency board jointing machine, with upper plate adopts vertical lifting and installs the synchronous system, so as to achieving higher planeness, saving 0.3mm plane thickness .

Working Procedure :Radio Frequency Wood Laminating Machine

Gewinn-2

Gluing → Infeeding → Vertical Press → Horizontal Press

Gewinn-3

Heating → Vertical&Horizontal Press Closing → End product Pushing

Detailed Images

Model Details of Radio Frequency Wood Laminating Machine

Parameter

Technique Data of Radio Frequency Wood Laminating Machine

Type	CGPB-50PZ	CGPB- 61PZ	CGPB-70PZ	CGPB-120PZ
Workbench size (mm)	2500×1300	2500×1300	2500×1300	2500×1300
Jointing thickness (mm)	6-50	6-80	8-80	8-80
Vertical pressure (T)	28	28	28	42
Horizontal pressure (T)	22	33	42	78
Overall size (mm)	8700(L)×4400(W) ×2300(H)	8700(L)×4400(W) ×2300(H)	10200(L)x4400(W) x2300(H)	18200(L)x5200(W) x2400(H)
Weight (T)	5.5	6.5	7.5	13
Feeding	Auto	Auto	Auto	Auto

Benefits

Benefit you can count on : Radio Frequency Wood Laminating Machine

1. High Timber Outturn : 5%-10% more on average compared to the general clamp carrier

2. High Efficiency : 1-3 mins to finish one board , especially processing in winter much more significant

3. Energy Saving :15-30kw/h power consumption for 1cbm board jointing

4. Low Labor Cost :feeding & discharging device of belt-conveyer , adding palletizing and gluing system for option to get more efficient as well

5. Heavy Frame : Using large-scale machine tool to ensure its verticality

6. Easy Operation: Touch screen HML, with a built-in operation instruction which including installation, operation, repair, maintenance etc.

7. Safety :Adding high sensitive spark protection circuit and make separated cabinet for HF parts

8. Good components :assorting Taiwan pneumatic tools mostly

9. The thinnest board of jointing is 6mm at least, 80mm max thickness

Application

Application : Radio Frequency Wood Laminating Machine

It mainly apply to laminated wood, particle board,door panel jointing, and solid wood, door pocket, door line banding, or other wooden block gluing etc.

===============================================================================

Gewinn-9

Why Gewinn ?

1. As the standing council unit of Lunjiao Government wooding machine association

2 . Cooperating with premium and reliable suppliers only

3 . Experienced team with considerate exporting and shipping service offering

4 . No additional profits price, suppliers pay to become our members

5. As the third party inspection

Remark:

Payment: 100% in advance, 30% for deposit, balance before shipment.
Delivery time: 5-20 days after deposit received
Overseas Service/Training/Installation: Available
Inspection: Detailed report with photos to be provided before shipment
Warranty: 1 year under normal operation, except easy-damaged parts and electrical elements
12-hours online service: Available
OEM service: Accepted
Cost-benefit: Gewinn making you cost-expense saved and lower your risk with premium wooding machines only.
