Gewinn

Company Advantages
1. Gewinn uses well-selected and excellent materials to meet differient needs.
2. The product is built to last for a long time. Its components do not easily wear over time and do not demand frequent maintenance, but can work for long.
3. The product features an intelligent design. Any time there is a problem in the production process, it either shuts down to prevent further problems or fixes the issue internally.
4. With accumulated production experience for many years, Gewinn United Co., LTD. becomes reliable for quality of .

Quick Details

• Condition:New

• Place of Origin:Hebei, China (Mainland)

• Model Number:CGPB-50PZ / CGPB-61PZ / CGPB-70PZ

• After-sales Service Provided:Engineers available to service machinery overseas

---



Model No.: CGPB-50PZ / CGPB-61PZ /CGPB-70PZ

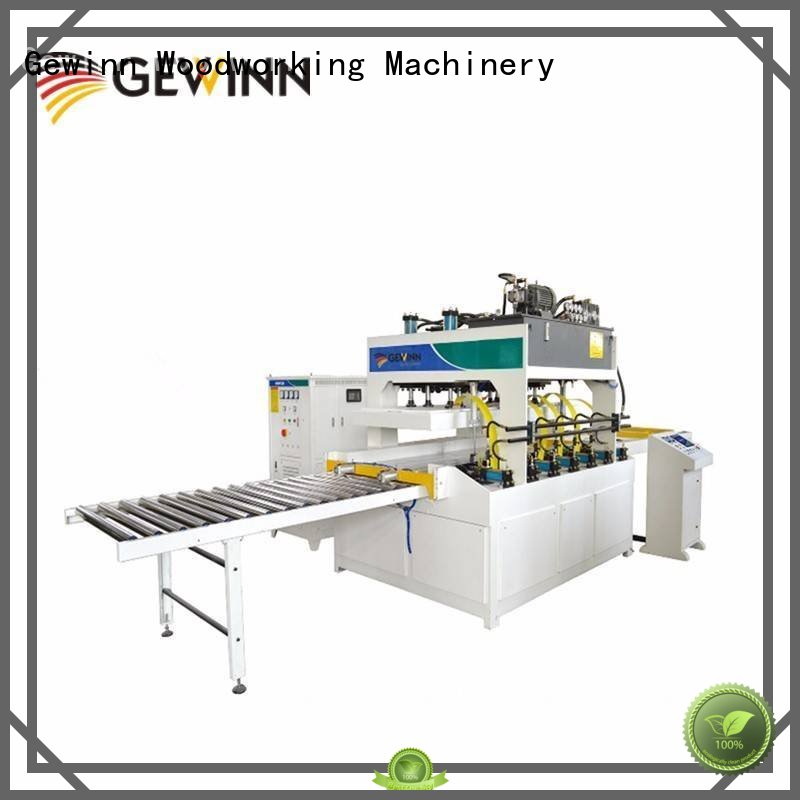

This plane board jointing machine is the updated version of high frequency board jointing machine, with upper plate adopts vertical lifting and installs the synchronous system, so as to achieving higher planeness, saving 0.3mm plane thickness .







Working Procedure  : HF wood board assembling machine/high frequency board jointing equipment





 Gluing → Infeeding → Vertical Press → Horizontal Press

Heating → Vertical&Horizontal Press Closing → End product Pushing

















1. High Timber Outturn : 5%-10% more on average compared to the general clamp carrier

2. High Efficiency : 1-3 mins to finish one board , especially processing in winter much more significant

3. Energy Saving :15-30kw/h power consumption for 1cbm board jointing

4. Low Labor Cost :feeding & discharging device of belt-conveyer , adding palletizing and gluing system for option to get more efficient as well

5. Heavy Frame :  Using large-scale machine tool to ensure its verticality

6. Easy Operation: Touch screen HML, with a built-in operation instruction which including installation, operation, repair, maintenance etc.

7. Safety :Adding high sensitive spark protection circuit and make separated cabinet for HF parts

8. Good components :assorting Taiwan pneumatic tools mostly

9. The thinnest board of jointing is 6mm at least, 80mm max thickness





It mainly apply to laminated wood, particle board,door panel jointing, and solid wood, door pocket, door line banding, or other wooden block gluing etc.









===============================================================================





Remark:

•  Payment: 100% in advance, 30% for deposit, balance before shipment.

•   Delivery time: 5-20 days after deposit received

• Overseas Service/Training/Installation: Available

•   Inspection: Detailed report with photos to be provided before shipment

•   Warranty: 1 year under normal operation, except easy-damaged parts and electrical elements

•   12-hours online service: Available

•  OEM service: Accepted

•  Cost-benefit: Gewinn making you cost-expense saved and lower your risk with premium wooding machines only.
