Gewinn

Company Advantages
1. Gewinn is designed to meet safety standards. It has been considered in terms of electrical safety, mechanical safety, and operational safety. In order to ensure the long life and flawless performance, these high frequency wooden frame jointing machines are manufactured under the supervision of our team of experts using premium grade factor inputs and advanced technology in compliance with the set quality standards
2. This product has won praises from customers all over the world and has great market application potential. The entire range is developed under the guidance of expert professionals, which holds extensive knowledge of this domain
3. The product is highly reliable in performance and can be used for a long period. Gewinn is engaged in manufacturing and offering a wide range of CNC panel sawing machine that has the capability to perform with high levels of consistency

Quick Details

• Condition:New

• Type:Vacuum Drying Equipment

• Place of Origin:Hebei, China (Mainland)

• Brand Name:CANGAO

• Model Number: CGGZ-6

• Voltage:380V

• Power(W):91kw

• Dimension(L*W*H):1000*1000*8000

• Weight:10.6T

• Certification:CE / ISO9001:2008

• Warranty:1 year

• After-sales Service Provided:Engineers available to service machinery overseas

---

Packaging & Delivery

---

No cracking, no bending high frequency wood dryer

Model No.: CGGZ-3/ CGGZ-4.5/ CGGZ-6/ CGGZ-8/ CGGZ-10/ CGGZ-12

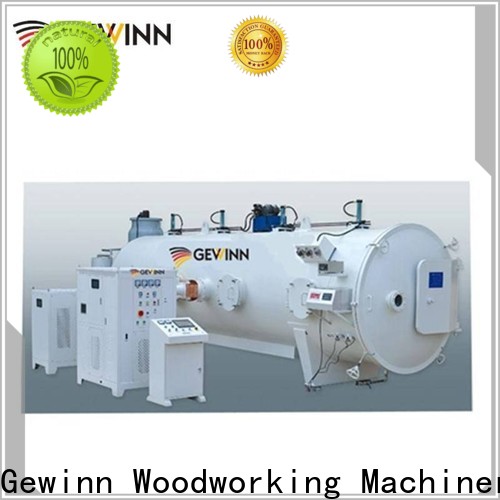

HF Vacuum timber dryer is a relatively small and fast timber drying equipment. It adopts HF electric field as heating source, uniformly radiate to timber, directly heat moisture, speed up moisture removing by vacuum water absorption function, which is extremely suitable for solid wood and all kinds of timber processing factory



Sample:   Final Moisture Content   8%-10% ( less than 3% of error )







Benefit you can count on:

• Vacuum Drying — 60℃ starting to vaporize , which can reduce wood cracking and deformation while achieving low temperature drying

• Warp Deformation Recovering --- Wood clamped by hydraulic system before drying, warping deformation to be recovered when soften , making outturn greatly improving and make easy palletizing

• Quick Heating --- No need heat conduction, inside and outside of wood timber are heated at the same time

• Fast Dehydration--- During the heating process, stepped temperature difference between inside and outside of wood can speed up the water movement from inside wood to outside wood

• High Quality--- Avoid outside & inside cracking and color change, by taking control of heating speed, relative vacuum degree and condensing rate.

• Good Adaptability---It can achieve both low temperature and high temperature drying, also can eliminate stress , solidify resin and apply to dry almost all kinds of wood

• Full-automatic & Easy operation --- Automatic feeding and discharging device , drying proceeding under unattended mode

• Cost Saving--- Low dry shrinkage and material saving

• Sterilization function & Eco-friendly



Model Details





Vacuum Kiln is made of  anti-corrosive 304 stainless steel , with strong pressure resistance and good sealing .

Good vacuum tank can lower the water boiling point , speed up the water movement in wood, and improve the drying speed, shorten the drying time.



PLC and touch screen automatic control , easy and unattended operation during drying



Technique Data:







Drying time for different timber :













1.HF generator



2.Drying container



3.Vacuum pump



4.Hydraulic pressure



5. Feeding track



6.Cooling tower



7.Cooling unit



8. Vapor separator



9.HF heating electrode plate



10.Feeding device







Other wooding models you could check below :



==================================================================================================





Our Company



We are the woodworking machine expert -- Foshan Gewinn United

We are specialized in exporting good quality woodworking machines in Lunjiao Town, models covers

Edge Banding, Saw, Boring, CNC, Finger jointing line, High Frequency ,dust collector and accessories etc.





Our Partner





Our Team







Why Gewinn ?



 1. As the standing council unit of Lunjiao Government woodworking machine association

 2 . Cooperating with premium and reliable suppliers only

 3 . Experienced team with considerate exporting and shipping service offering

 4 . No additional profits price, suppliers pay to become our members

 5. As the third party inspection



Gewinn aims to lower your risk instead of offering you the lowest price



Remark:

• Payment: 100% in advance, 30% for deposit, balance before shipment.

• Delivery time: 5-20 days after deposit received

• Overseas Service/Training/Installation: Available

• Inspection: Detailed report with photos to be provided before shipment

• Warranty: 1 year under normal operation, except easy-damaged parts and electrical elements

• 12-hours online service: Available

• OEM service: Accepted

• Cost-benefit: Gewinn makes you cost-expense saved and lower your risk with premium wooding machines only.











Company Features
1. Gewinn United Co., LTD. can provide all quality certificates available for .
2. We aim to raise awareness of quality importance between our suppliers and employees. Through our high-quality, functional products and solutions, we strive to make good products for everyone.
