Condition:New
Spindle Speed:6750r.p.m
Air Pressure:6-8bar
Max. Working Width:150MM
Max Working Height:150MM
Place of Origin:Guangdong, China (Mainland)
Brand Name:YONGQIANG
Model Number:FJL150A
Voltage:380v
Dimension(L*W*H):8000x6000mm
Weight:8T
Certification:CE, IQNet
Warranty:1 year
After-sales Service Provided:Engineers available to service machinery overseas
Packaging Details: | EPE foam and PE bag warped |
---|
This timber jointing machine is recognized as the most stable method
of creating length joints between two solid wood or wooden composite
components. It is used in order to produce very long wood components
or to separate out knots and cracks which lower the strength. Using finger joints it
is possible to joint short pieces of wood into one, in principle, infinitely long strand
of wood.
Expert in wood Finger jointing line for 27 years
Our finger jointing line, offers a particularly workable solution for length joints processing for both
vertical and horizontal finger joints ,with belt conveyor, finger joint shaper (with glue), roller conveyor,
chain conveyor, using extremely user-friendly , easy-operated, noise-free system to
achieve high precision effect
Automatic finger jointing line/Finger joint machines
Semi-auto Wood working finger jointing production line
Model NO.: FJL 150A
Technical Parameter of Automatic finger jointing line/Finger joint machines
Full Automatic Finger Joint Line FJL 150A | |
Wood entry length | 150-900mm |
Shaping wood thickness | 20-150mm |
Cutting table width | 450mm |
Wood width | 20-80mm |
Wood thickness | 30-150mm |
Tenon spindle dia. | Φ50mm |
Tenon rotary speed | 6750r.p.m |
Hogger spindle dia. | Φ30mm |
Hogger rotary speed | 2840r.p.m |
Max. Wood exit length | 2500mm |
press force | 7500kg |
Shaper spindle power | 11kw X 2 |
Hogger power | 4kw X 2 |
Scoring power | 0.75kw X 3 |
Hydraulic system power for Press | 4kw |
Saw blade power for Press | 4kw |
Belt conveyor power | 0.75kw |
Roller conveyor power | 0.75kw |
Total Power | 41.75kw |
Working air pressure | 6-8 bar |
Machine Dimension | 8000x6000mm |
Benefit you can count on : Automatic finger jointing line/Finger joint machines
l Semi-Automatic finger jointing line, to complete the process of wood finger shaping, gluing,
conveying, jointing and pressing.
l Using German OMRO electrical control component to ensure efficient and stable
operation.
l Statistic and production date recording with encoder.
l Incredibly easy to use with Japanese micro-computer control system
l Following CE standard and user-friendly features to make more stable and reliable, assuring
a world quality.
l Accommodating different wood size requirement and multiple levels of wood moisture and
hardness.
l Compact and efficient production process and multiple senor feedback ensures its stability in operation compared to others.
l Using noise-free technology together with cushioning and noise-proof processing
for vibration parts to lower noise, increase machine stability and service life.
l Proper dust-collecting design can connect either central or individual dust-collecting device,
minimizing sawdust emission .
l Customized level of automation - from manual to fully automatic.
l Almost all types of glue can be used with the relevant adhesive pump.
Cetificate
Working Procedure : Automatic finger jointing line/Finger joint machines
Workshop
Below Series models for your reference, more wooding machines you could check our website: http://gewinn.en.alibaba.com www.gewinn.com.cn
Structure of Automatic finger jointing line/Finger joint machines
=====================================================================
Our Company
We are the wooding machine expert -- Foshan Gewinn United, Welcome!
We Gewinn specialized in exporting premium wooding machines in Lunjiao Town, models covering all kinds of wooding machines, like Edge Banding, Saw, Boring, CNC, Finger jointing line, High Frequency and accessories etc.
Our Partner
Our Team
Why Gewinn?
---For suppliers / buyers, do you think they prefer a sales or a company with a team
to open their overseas market ?
---For buyers, do you think you would like to work with a seller or a partner,
who helping you to get good models in China without any extra pay ?
1. As the standing council unit of Lunjiao Government wooding machine association
2 . Cooperating with premium and reliable suppliers only
3 . Experienced team with considerate exporting and shipping service offering
4 . No additional profits price, suppliers pay to become our members
5. As the third party inspection
Gewinn aims to lower your risk instead of offering you the lowest price
Remark:
Payment: 100% in advance, 30% for deposit, balance before shipment.
Delivery time: 5-20 days after deposit received
Overseas Service/Training/Installation: Available
Inspection: Detailed report with photos to be provided before shipment
Warranty: 1 year under normal operation, except easy-damaged parts and electrical elements
12-hours online service: Available
OEM service: Accepted
Cost-benefit: Gewinn making you cost-expense saved and lower your risk with premium wooding machines only.

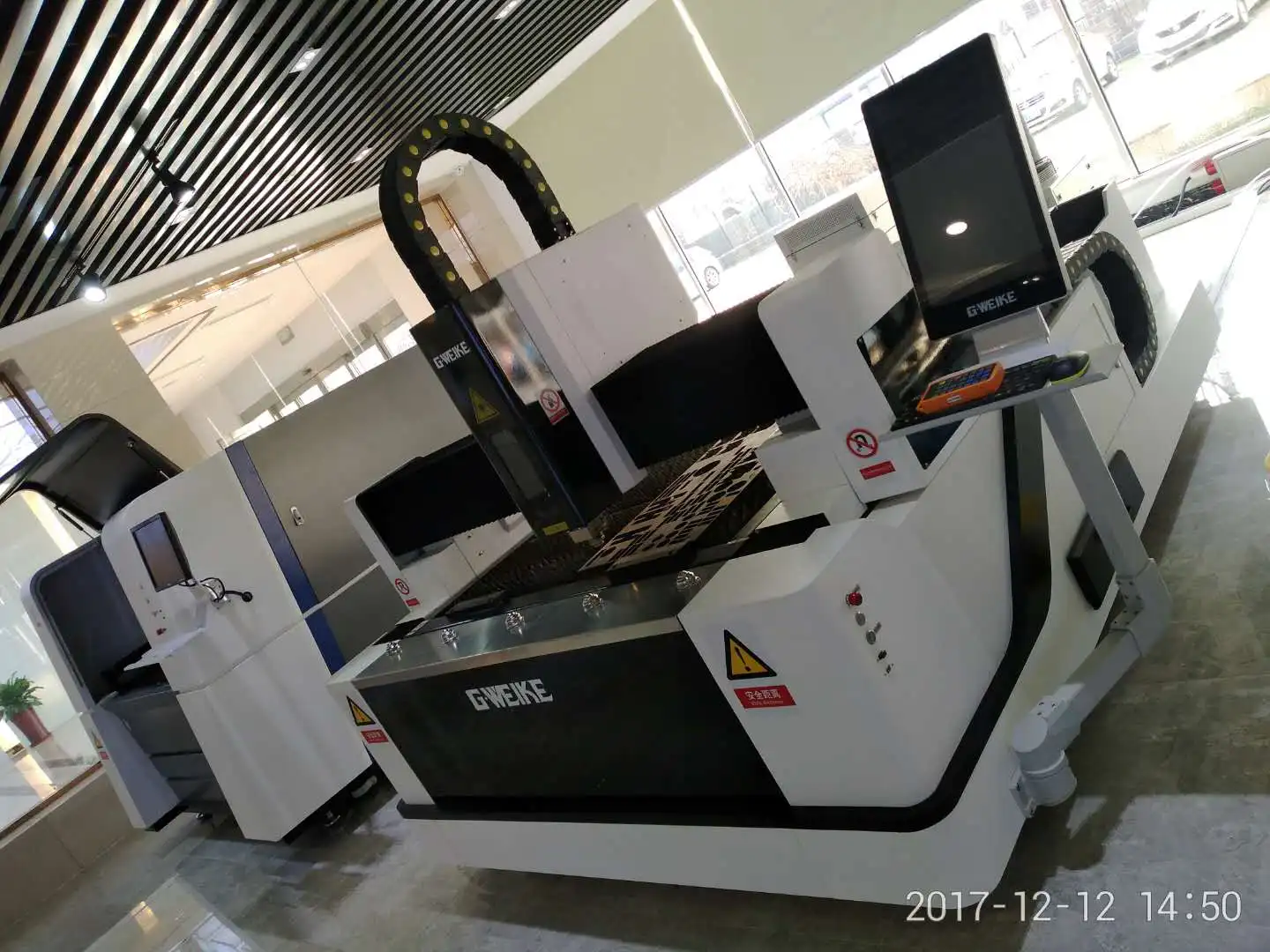

Merry Christmas Selling Hot LF6015C Factory Price Fiber Laser Steel Plate Cutting Machine
Specification
Merry Christmas Selling Hot LF6015C Factory Price Fiber Laser Steel Plate Cutting Machine LF3015CN is equipped with German fiber laser cutting head and untouched automatic following system, the fiber laser cutting machine can adjust the focal length automatically to present the best cutting effect, avoiding scrapping the materials because of the change of focal length caused by lumps of the materials.
Technical Parameters
Machine Model | Merry Christmas Selling Hot LF6015C Factory Price Fiber Laser Steel Plate Cutting Machine |
Laser type | Import original fiber laser |
Laser power | 500W/700W/1000W |
Dimensions | 4600mm*2450mm*1700mm |
Working area | 3000mm*1500mm |
Resetting positioning accuracy | ±0.02mm |
Maximum | speed |
Maximum acceleration | 1G |
Power consumption | <10kw |
Description
Merry Christmas Selling Hot LF6015C Factory Price Fiber Laser Steel Plate Cutting Machine adopts 1.high performance machine working bed with exclusive manufacturing process which can ensure 20 years of use without deformation. 2.imported with original packaging laser source has good beam quality and more accurate light path. 3.imported guide drive and servo motor which can ensure high precision and speed. 4.low power consumption and effective cost control 5.intelligent man-mahcine interface, easy to learn an d operate. 6.standardized processing format which can fit for different sizes of metal plate cutting.
The Accessory
Water chiller
Fan
Air compressor(optional)
Voltage stabilizer(optional)
The Sample&Application
Merry Christmas Selling Hot LF6015C Factory Price Fiber Laser Steel Plate Cutting Machine widely used in life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people’s daily life. Used for cutting a variety of metal plates, mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.
Laser Power: 1000w-8000w(optional) LF3015CN laser cutting machine professional at cutting 0.5-25mm carbon steel, 0.5-16mm stainless steel, galvanized sheet, electrolytic metal plate, 0.5-16mm aluminum alloy,0.5-10mm brass and copper and other metal materials.
Other products you may interest in
Our Company
Jinan G.Weike Science & Technology Co., Ltd is established in July 2004. It is a modern enterprise in combination of researching, producing and selling on Optics, Mechanics and Electronics. Our company is one of the biggest manufactures for small and medium laser cutting machine, recently the company owns 150 employees, more than 500 square meters of researching and office space, more than 26000 square meters of factory space. The total sales quality is more than 10000 sets since the company established and along with the production scale expanding, the annual sales quality has achieved more than 3000 sets now. Our products are sold to USA, Canada, Australia, Europe, South east Asia, Africa etc. more than 80 countries and areas, and supply OEM service for more than 10 manufactures.
Workshop&packing&shipment
Warranty and service
Three years warranty for machine. English technical to door service. English manual and Video CD for machine using and maintenance.We offer free training in our factory, welcome to visit and learn more about our machines. Free accessories :Software ,manual, book, cd videos, USBcontrol
1.Pre-sales service A. Free sample making For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Try before you buy. B. Progressing Solution Design According to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
2.After-sales service: Training to install(3options): A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting. B. You can come to our factory for training. Gweike will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments, all sorts of tools and testing facility,we will also provide accomadation during training period. Training Time: 1-10 working days.
