Your reliable woodworking machinery supplier.
Condition:New
Place of Origin:Hebei, China (Mainland)
Brand Name:CANGAO
Model Number:CGPB-50PZ / CGPB-61PZ / CGPB-70PZ
After-sales Service Provided:Engineers available to service machinery overseas
Wooden assembling machine / HF board joining machine
(Vertical Lifting) (with feeding & discharging device)
( 5-80mm thickness board )
Model No.: CGPB-50PZ / CGPB-61PZ /CGPB-70PZ
This plane board jointing machine is the updated version of high frequency board jointing machine, with upper plate adopts vertical lifting and installs the synchronous system, so as to achieving higher planeness, saving 0.3mm plane thickness .
Working Procedure
Gluing → Infeeding → Vertical Press → Horizontal Press
Heating → Vertical&Horizontal Press Closing → End product Pushing
Model Details of plane board jointing machine
Technique Data of plane board jointing machine
Type | CGPB-50PZ | CGPB- 61PZ | CGPB-70PZ | CGPB-120PZ |
Workbench size (mm) | 2500×1300 | 2500×1300 | 2500×1300 | 2500×1300 |
Jointing thickness (mm) | 6-50 | 6-80 | 8-80 | 8-80 |
Vertical pressure (T) | 28 | 28 | 28 | 42 |
Horizontal pressure (T) | 22 | 33 | 42 | 78 |
Overall size (mm) | 8700(L)×4400(W) ×2300(H) | 8700(L)×4400(W) ×2300(H) | 10200(L)x4400(W) x2300(H) | 18200(L)x5200(W) x2400(H) |
Weight (T) | 5.5 | 6.5 | 7.5 | 13 |
Feeding | Auto | Auto | Auto | Auto |
Benefit you can count on :
1. High Timber Outturn : 5%-10% more on average compared to the general clamp carrier
2. High Efficiency : 1-3 mins to finish one board , especially processing in winter much more significant
3. Energy Saving :15-30kw/h power consumption for 1cbm board jointing
4. Low Labor Cost :feeding & discharging device of belt-conveyer , adding palletizing and gluing system for option to get more efficient as well
5. Heavy Frame : Using large-scale machine tool to ensure its verticality
6. Easy Operation: Touch screen HML, with a built-in operation instruction which including installation, operation, repair, maintenance etc.
7. Safety :Adding high sensitive spark protection circuit and make separated cabinet for HF parts
8. Good components :assorting Taiwan pneumatic tools mostly
9. The thinnest board of jointing is 6mm at least, 80mm max thickness
Application :
It mainly apply to laminated wood, particle board,door panel jointing, and solid wood, door pocket, door line banding, or other wooden block gluing etc.
===============================================================================
Why Gewinn ?
1. As the standing council unit of Lunjiao Government wooding machine association
2 . Cooperating with premium and reliable suppliers only
3 . Experienced team with considerate exporting and shipping service offering
4 . No additional profits price, suppliers pay to become our members
5. As the third party inspection
Remark:
Payment: 100% in advance, 30% for deposit, balance before shipment.
Delivery time: 5-20 days after deposit received
Overseas Service/Training/Installation: Available
Inspection: Detailed report with photos to be provided before shipment
Warranty: 1 year under normal operation, except easy-damaged parts and electrical elements
12-hours online service: Available
OEM service: Accepted
Cost-benefit: Gewinn making you cost-expense saved and lower your risk with premium wooding machines only.

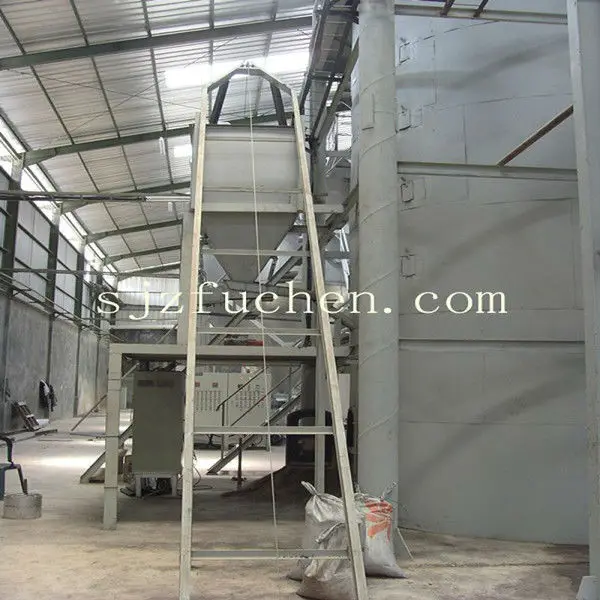

hot air drying type gypsum powder FACTORY
Natural gypsum generally includes dihydrate gypsum and anhydrous gypsum. In order to get the
valuable materials, generally, we get semi-hydrated gypsum through heating the dihydrate gypsum. CaSO4·2H2O heating CaSO4·1/2H2O+3/2 H2O↑
Working principle of fluidized furnace: the main frame of fluidized furnace consists many radiator
oil pipelines which with small diameter. And heat transfer fluids will be fed into the pipelines, the heat will
be transferred to inside of the furnace and connect with gypsum powder. Meanwhile, the air produced by
ROOTS fan which installed at the bottom of the furnace and steam produce when gypsum powder dehydrated
makes the powder like boiling status.
number | Name | type | power KW | number |
1 | Hammer broken machine | 800×600 | 50 | 1 |
2 | lifter | TH400sh | 15 | 1 |
3 | material bucket | 120m3 |
| 1 |
4 | Unidirectional helix strobe | 400×400 |
| 1 |
5 | The machine to grind the small pieces of stone to powder | 5R4119 | 137.5 | 2 |
6 | supply the material in spiral | LS400 | 4 | 1 |
7 | Helix transport machine | LS400 | 4 | 1 |
8 | lifter | TH400sh | 15 | 1 |
9 | Cushion store | 50m3 |
| 1 |
10 | Tube helix transport | Φ300 | 5.5 | 2 |
11 | Boiling stove | 2.2×2m | 30 | 1 |
12 | Static dust remover | 0.72×12m |
| 1 |
13 | Chain transport machine | FU270 | 7.5 | 1 |
14 | Helix transport machine | LS400 | 7.5 | 1 |
15 | store | 200m3 |
| 4 |
16 | Unidirectional helix strobe | 400×400 |
| 4 |
Main Technology
gypsum mine ->first breaking ->second breaking ->grinding ->calcining
->aging ->finished products
If you are interested in our machine and want to know more information,
feel free to contact me, sending an email or chatting me online.
Waiting for your news. Thanks.
Cold Room equipment
The combination of cold room, is made of polyurethane cold storage panel assembled into a room and evaporator,cold storage refrigeration system in the composition of the host. Widely used in meat, aquatic products, eggs, dairy products, frozen drinks, fruits and vegetables, edible fungus, pharmaceutical and industrial raw materials, etc.
