auto-cutting woodworking equipment easy-installation

Quick Details

Condition:New
CNC or Not:CNC
Motor Type:Delta
Spindle Speed:12000r/min
Place of Origin:Guangdong, China (Mainland)
Model Number:SKD-85
Voltage:380V 50HZ, 380V/50HZ
Power(W):14kw
Weight:2300kg
Dimension(L*W*H):2800x2300x1700mm
Certification:ISO9001:2008
Warranty:1 year
After-sales Service Provided:Engineers available to service machinery overseas
Machine frame:Heavy duty
Processing:Horizonta & Vertical
Control system:German DB CNC system
Processing data:Support CAD imput
Servomotor:Delta
Electric appliances:Schneider & Taiwan imported
Pneumatic device:Taiwan imported
Moving guide:Taiwan high precision guide
Delivery Detail:within 35 days after 30% downpayment, 70% before delivery

Packaging & Delivery

Packaging Details:	EPE packing with metal plate in the bottom

Product Description

This boring machine is applicable for drilling for cupboard doors,furniture industry, decorative material,cabinet door,computer table, cabinets and panels,plastic fabrication,model,art crafts,musical instrument, plate.with computer control and automatic feeding & drilling,easy for operating.

Model Details of boring machine

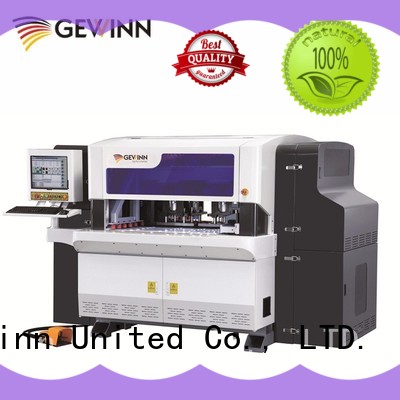

Gewinn auto-cutting woodworking equipment easy-installation-1

Benefits you can count on

-Equipped with German CNC control system and integrated CAM software can make image edit for the work pieces, generating NC program directly for processing.

-Processing files can be uploaded automatically by scanning bar code, generating NC program for processing.

-Able to connect with management software, achieve auto operating with digital control.

-Advanced CNC program designed, assure feeding device and drilling device are working synchronously during processing, ensure efficient processing.

-Equipped with German CNC system. Image-Text inputting interface, CAD drilling data, ensure easy control. Management software can be customized upon customers’ producing requirements.

-Driving system: Equipped with Delta servomotor, imported gear and rack, Taiwan strong linear guide and carriage, with oil supplying device for dust removing and lubricating.

-High flexibility due to the proven exchangeable drilling block system. Equipped with Auto side aligning device which is driven by brake motor and plus probe for work piece movement controlling, adapting to the positioning requirement of different work piece width.

-Equipped with auto clamping and feeding device, ensure automatic drilling by processing program.

-Auto pressing device: The pressing and loosening of the work pieces are controlled by computer program, in order to satisfy the feeding and drilling.

Parameter

Parameter of boring machine

Working stroke & Speed	X axis: 1250mm Speed: 45m/min
	Y axis: 1490mm Speed: 45m/min
	A axis: 80mm Speed: 45m/min
	Z axis: 50mm Speed: 45m/min
Drilling Unit
Vertical Spindle	7(X axis) +9(Y axis) including Ø35mm drill holder
Horizontal Spindle	2(Left)+2(Right) and 1(Front)+1(Back)
Motor power	1.5kw, 4000r/min
Router
Router type	Er32
Tool Shank Dia	Ø6,Ø8
Router power	2.2kw
Speed	12000r/min
Processing Size Range
Min work-piece width	50mm
Max work-piece width	850mm
Min work-piece length	250mm
Max work-piece thickness	50mm
Others
Working table height	950mm
Total power	14kw
Voltage	380V/50HZ
Air pressure	0.6-0.8Mpa
Weight	2300KG
Dimention	2800x2300x1700mm
