cost-effective woodworking machinery supplier quality assurance for surfaces cutting

Quick Details

Condition:New
Type:Band Saw
Use:Woodworking
Style:Horizontal
Place of Origin:Guangdong, China (Mainland)
Brand Name:Gewinn
Model Number:MJ350B
Usage:Solid wood cutting
Voltage:380V
Power(W):14kw
Weight:1600KG
Warranty:1 year
After-sales Service Provided:Engineers available to service machinery overseas
Max cutting width:350mm
Min cutting length:250mm
Feeding motor:0.75kw
Sawing motor:11kw
Lifting motor:0.37kw
Saw kerf:1.8-2.2mm
Dia of saw wheel:700mm
feeding speed:0-18m/min
Dimension:2420x1980x1780mm
Min product:2mm

Packaging & Delivery

Packaging Details:	standard packing. or your required
Delivery Detail:	15-25 days

Gewinn cost-effective woodworking machinery supplier quality assurance for surfaces cutting-1

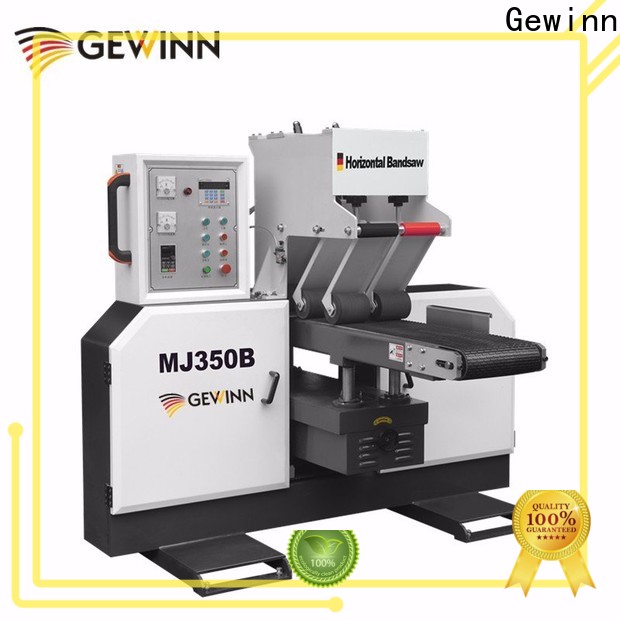

High Speed Horizontal Band Saw

This type of Horizontal band saw with saw wheels install in below, helpful to imprve machine stability and cutting speed. Users can feed different size timber for cutting by separated pressing units.

Machine Parameter

Model	MJ350B	MJ450B	MJ550B
Saw wheel diameter	700mm
Max cutting width	350mm	450mm	550mm
Min product thickness	2mm
Saw blade size	4660x75x1.6	4860x75x1.6	5080x75x1.6
Feeding speed	0-18m/min
Sawing motor	11kw	11kw	15kw
Feeding motor	0.75kw
Lifting motor	0.37kw
Dimension	2420x1980x1780	2420x2100x1780	2420x2280x1780

Gewinn cost-effective woodworking machinery supplier quality assurance for surfaces cutting-2

Gewinn cost-effective woodworking machinery supplier quality assurance for surfaces cutting-3

Gewinn cost-effective woodworking machinery supplier quality assurance for surfaces cutting-4

Gewinn cost-effective woodworking machinery supplier quality assurance for surfaces cutting-5

Gewinn cost-effective woodworking machinery supplier quality assurance for surfaces cutting-6

Machine Video

https://youtu.be/HY_Jrzf-Zng
