Gewinn high-quality woodworking equipment easy-operation for bulk production

Company Advantages
1. Gewinn woodworking machines for sale is manufactured by highly qualified and experienced staff using the advanced production technology. We manufacture and offer a wide range of CNC tenoning machine that has the capability to perform with high levels of consistency
2. With designs to fit any style and to work for any occasion, it's loved by most of our customers who said they enjoy sharing food with family and friends by using this product. Our offered range encompasses solid wood machine, panel machine, small simple machine, customized solution as well as tools and accessories
3. This product tends to have more superiorities in performance. The entire range is developed under the guidance of expert professionals, which holds extensive knowledge of this domain
4. The efficiency and costs of this product are optimized and minimized. Gewinn united is a well-known supplier and exporter of the technically superior Gewinn wood cutting machine which has been designed to perform the heavy duty
5. By virtue of its unique treatment process, the safety and effectiveness of woodworking equipment are at a cutting-edge of the industry. Our clients can avail from Gewinn highly efficient range of panel processing machine at market leading prices

Quick Details

• Condition:New

• Type:Band Saw

• Use:Woodworking

• Style:Horizontal

• Place of Origin:Guangdong, China (Mainland)

• Brand Name:EIMARK

• Model Number:MJ3971AX400

• Usage:Solid wood cutting

• Voltage:380V

• Power(W):18.5KW

• Dimension(L*W*H):3000x2230x2050mm

• Weight:1950KG

• Certification:CE

• Warranty:1 year

• After-sales Service Provided:Engineers available to service machinery overseas

• Max working size:400x300mm

• Dia of saw wheel:711mm

• Hydraulic pressure:55kg/cm2

• Saw kerf:1.2-2.2mm

• width of convey belt:400mm

• feeding speed:0-18m/min

• saw wheel elevate motor:0.18kw

• distance from saw blade to worktable:3-200mm

• saw blade size:4572x27x0.9mm or 4572x41x1.27mm

• cooling:atomizing

---

Packaging & Delivery

---

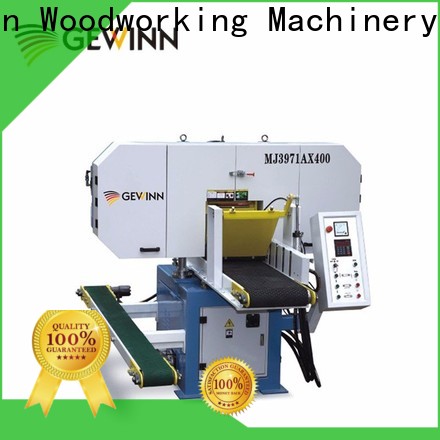

This industrial band saw is designed for Solid wood sawing. aim at cutting wood from the original wooden pillar. to make the beautiful and smooth wood panel.

Components of  industrial band saw

A - Unit Clamp

B - Control Panel

C - Rear Roller

D - Atomizing Cooling Saw

E - Front Roller

F - Saw Wheel Motor





2.High-precision rotary encoders with precision ball screw, which achieves low noise, small

torque fluctuations and long-term maintenance, also ensure the greater accuracy of sawing thickness.

3.Assisted material revert system, which can ensure a higher efficiency and more energy saved.

4.The PLC integrated control system, assures a simple and steady operation.

5.Automatic hydraulic saw blade tensioning compensation system to ensure the best tension state of the working saw blade and extend the useful life of the saw blade.

6.The conveyor belt is driven by a hydraulic or electric motor, which provides steady operation, constant and powerful driving power, so as to ensure the work piece is well shaped and smooth.

7.Specially designed with multi units of pinch roller setting, which ensure the work piece can be

firmly pressed when cutting, it is also a guarantee of operation safety.

8.Saw wheel is made by medium carbon steel,  convex saw wheel avoids saw

blade sliding off.

9.Water-cooling system provides high efficiency cooling and cleans wood dust

on saw teeth

10.The thickness tolerance is only 1.1-1.6mm, compared with other processing methods,

it can save approximately 20% of material, and this is the most effective way of

reducing costs.



Package of industrial band saw











     Gewinn United is engaged in the exporting business in the filed of woodworking

machinery. well known the local information in the country of woodworking machine in China. We promise only supply the good quality products with our best service.
