high-quality woodworking machinery supplier easy-installation for customization

Quick Details

Place of Origin:Guangdong, China (Mainland)
Brand Name:GEWINN
Model Number:SGJ1300R-R-RP
Power Source:Electricity
Variable Speed:Yes
Sand Pad Size:1330*2200mm
Application:Wood
Weight:5000kg

Packaging & Delivery

Packaging Details:	standard package or according to customer request
Delivery Detail:	Shipped in 30 days after payment

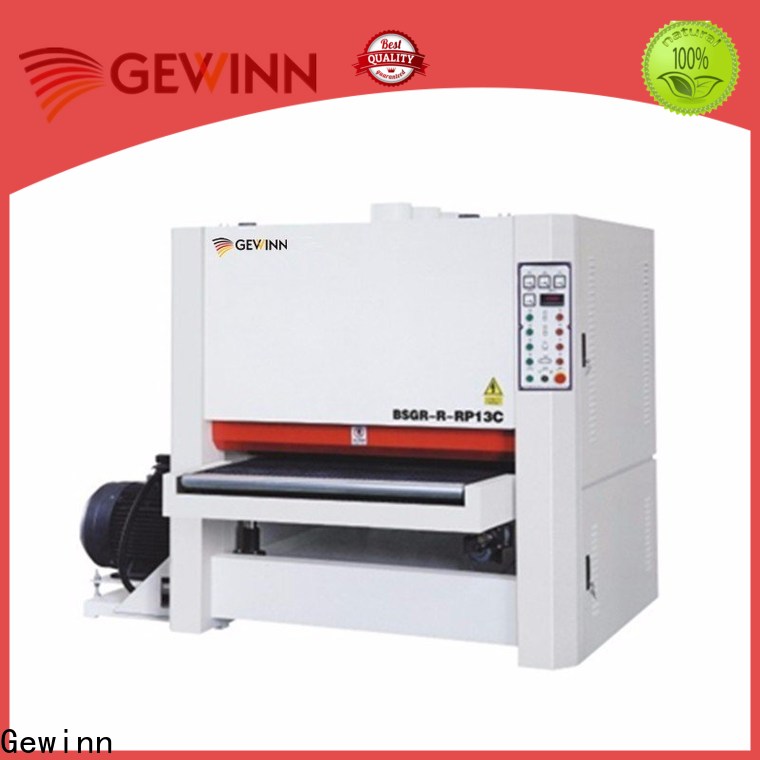

Planer Sanding machine/Wide belt sanding machine

Gewinn high-quality woodworking machinery supplier easy-installation for customization-1

BASIC SPECIFICATIONS : planer sander / sanding machine

MODEL ITEM	BSG1300K-R-RP
Working width	50-1300mm
Working thickness	6.5-150mm
Working length	Min 515mm
Planer roller diameter	180mm
Planer knife size	15152.5mm
1st sanding roller diameter	240mm
2nd sanding roller diameter	210mm
Planer RPM	2940
1ST belt speed	24m/s
2nd belt speed	18m/s
Feeding speed	0-19m/min (inverter)
Abrasive belt size	1330*2200mm
Feeding belt size	1300*4820mm
Total motor power	63.67kw
Planer motor power	22kw-2p
1st belt motor power	22kw-4p
2nd belt motor power	15kw -4p
Feeding motor power	4kw
Rise and decline motor power	0.37kw-4p
Brush motor power	0.25kw-6p
Air jet blower oscillating motor power	0.025kw-4p
Working pressure	0.4-0.8 Mpa
Compressed air consumption	1.5cbm/min
Average speed of sucked air	25-30m/s
Overall dimension	281620002070mm
N.W.	5050kgs

Machine frame:

*Built with steel structure; main motors positioned inside the frame.

*Transmission from main motor to working units with V-belts and pulleys, disc brakes for emergency stop.

*Standard paint in gray and light white.

*Machine manufacture per CE regulations according to European general machine directive.

*Machine frame for forklift and hoist.

Pressure units:

*Pressure units to hold the work pieces on the conveyor belt.

*There are anti-kickback fingers, press rollers and chip breakers before the planer, and solid press board, press rollers after the planer.

Double press rollers before and after the abrasive belt working units.

The press rollers with springs to compensate panel thickness difference.
