motor driven finger joint machine easy-operation for carpentry

Latest products

wood full-atuomatic Finger tenon production line

Multi spindle boring machine/furniture boring machine SKD-85

Precise cutting woodworking band saw machine MJ3971Ax400

office furniture material cutting use computer panel saw manufacturer HH-PRO-12-HC

Product Information
Feedback

Company Advantages
1. The good-looking appearance of Gewinn finger joint machine manufacturers has caught attraction of more customers. These automatic double side planers are less power consuming which enable our clients to save money
2. Gewinn United Co., LTD. plays a major role in exporting high quality finger joint machine every year. Since our commencement in the year 2013, we, Gewinn United, are well-known in the industry as one of the leading organizations engaged in manufacturing and supplying a commendable range of woodworking machine
3. The solar panel of the product is highly resistant to impact. Its surface, embedded with tempered glass, can protect the panel against exterior shock. Our clients can avail from Gewinn highly efficient range of panel processing machine at market leading prices

Build process

Finger jointing is recognized as the most stable method of wood length joints. And if you require this technology, Gewinn will offer you solutions in highest cost performance with quality/ price/ service mixed.

Gewinn motor driven finger joint machine easy-operation for carpentry-1

Why us?

1.Factory since 1988,over 30 years focus on finger joint technology , hundreds of manufactures are making profits with our finger joint lines.

2.High operational capacity, process speed up to 40m/min, over 19km/8h-shiftr.

3.Our finger joint can process shortest residual wood of 8cm long, maximum your production, minimum your cost.

Full automatic series:

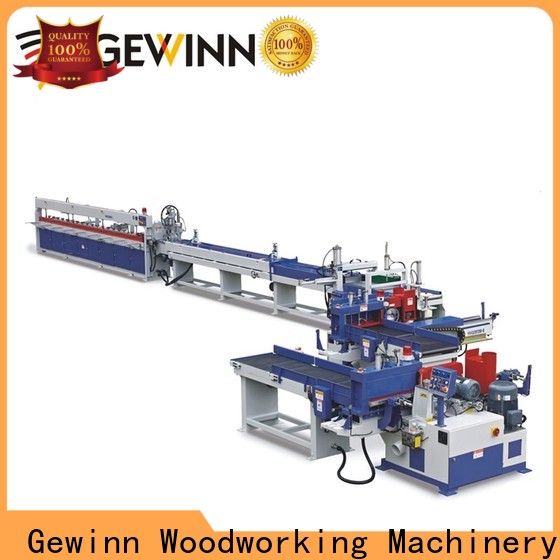

FJL150-8D ，motor drive, 6 meters,without cover，European standard

Gewinn motor driven finger joint machine easy-operation for carpentry-2

Two operators, easy operation
Gewinn motor driven finger joint machine easy-operation for carpentry-3

Specification

	Type	FJL150-8D	FJL150-8A	FJL150-9E
Specifications for machines	Infeed Length	150-850mm	150-850mm	150-850mm
	Shaping Thickness	20-150mm	20-150mm	20-150mm
	Max.Working width For Shaper Working Table	590mm	590mm	590mm
	Pressing Thickness	20-80mm	20-80mm	20-80mm
	Pressing Width	30-150mm	30-150mm	30-150mm
	Shaper Spindle Diameter	Φ50mm	Φ50mm	Φ50mm
	Shpaer spindle Speed	5600rpm	5600rpm	5600rpm
	Hogger spindle Diameter	Φ30mm	Φ30mm	Φ30mm
	Hogger spindle speed	2840rpm	2840rpm	2840rpm
	Max.pressing Length	6040mm	6040mm	6040mm
	Max.Thrust force	7500kg	7500kg	7500kg
Motor power	Shaper spindle power	15kw×2	15kw×2	15kw×2
	Hogger power	4kw×2	4kw×2	5.5kw×2
	Scoring sawing power	0.75kw×3	0.75kw×3	0.75kw×2
	Total Conveyor Power for shaper	0.75kw×4	0.75kw×4
	Hydraulic system power for shaper			2.2kw×2
	Hydraulic system power for press	3.75kw	3.75kw	4kw
	Saw blade power for press	4kw	4kw	4kw
	Total conveyor power for press	2.2kw	2.2kw	1.5kw
	Total power for belt conveyor	1.5kw	1.5kw	1.5kw
	Total power for roller conveyor	2.25kw	2.25kw	4.5kw
	Total power for chain conveyor	3.75kw	3.75kw	2.95kw
	Total motor power	60.7kw	60.7kw	65.35kw
Remark	Working air pressure	6-8Bar	6-8Bar	6-8Bar
	Wind measure of dust collector	9000m³/h	9000m³/h	9000m³/h
	Fixing dimensions	18900×6000mm	18900×6000mm	18000×6000mm

Other options

FJL150-9E, motor drive, 6 meters,with cover,European standard

FJL150-8A , motor drive, 6 meters,with cover,European standard

Operation video

According production capacity need, we have semi-auto finger joint line and single machine series.

Gewinn motor driven finger joint machine easy-operation for carpentry-6

Finger joint semi-automatic line

Gewinn finger joint line, from residual wood to high class product

Gewinn motor driven finger joint machine easy-operation for carpentry-7

Finger joint press

Gewinn finger joint line, from residual wood to high class product

Company Features
1. It is the progressive technology that our finger joint machine has won the popularity in the field.
2. Gewinn United Co., LTD. is committed to integrating wood finger joint machine industry resources in China and abroad and re-engineering the value chain. Inquiry!

q******r

The raw materials Gewinn finger joint machine manufacturers uses is selected by professional experts. It is manufactured in our factory which has been certified under ISO9001:2000 and ISO14001:1996

h******i

Gewinn finger joint machine conforms to the product design specifications. It is provided with a 24-month comprehensive warranty

s******j

Strong design attitude and a personality are added to finger joint machine manufacturers. It has been sold to over 60 countries, including Japan, Italy, France, Brazil, etc

r******u

Gewinn wood finger joint machine is manufactured by dedicated workforces. With a shell made of die-casting aluminum, it features high impact strength

k******n

Gewinn finger joint machine is upgraded from time to time as per the latest technological innovations. The product has low power consumption and high brightness

z******o

The most important difference between this product and other products is the long-term service life. It is manufactured in our factory which has been certified under ISO9001:2000 and ISO14001:1996
