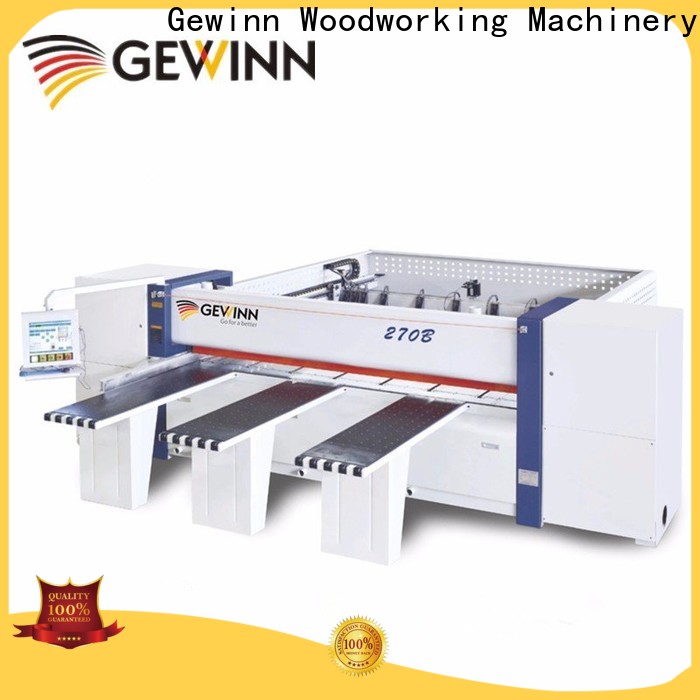

Gewinn oem & odm woodworking machinery supplier environmental-friendly

Quick Details

• Condition:New

• Type:Table Panel Saw

• Use:Woodworking

• Style:Horizontal

• Place of Origin:Guangdong, China (Mainland)

• Usage:wood panel sawing

• Voltage:220V/380V

• Dimension(L*W*H):6650*6200*1525mm

• Weight:4200kg

• Certification:CE

• Warranty:1 year

• After-sales Service Provided:Engineers available to service machinery overseas

• Control Screen:Taiwan ASK LCD

• PLC:Japan Mitsubishi

• Main saw motor:Italy motor

• Scoring saw motor:Taiwan quality motor

• Electronic protect:Taiwan AC contactor

• Machine frame:one-stop finish

• feeding part1:Japan servo motor

• feeding part2:Switzerland gear reducer

• feeding part3:high precision limit switch

• warranty:1 year

Packaging & Delivery

    Gewinn United is engaged in the exporting business in the filed of woodworking machinery. well known the local information in the country of woodworking machine in China. We promise only supply the good quality products with our best service.

Advantages

1.Japan Servo Motro equip with Switzerland gear reducer

2.Italy motor control sawing

3.Copper wheels for saw carriages moving

4.Taiwan ASK control screen

5.One-stop finished machine frame. prevent from out of shape

Technical Data:

    A. Max.Cutting Capacity: 2650*2650*80mm

    B. Max.Cutting Speed: 40m/Min

   C. Max.Feeding Speed: 40m/Min

   D. Dia of Main Saw: φ 355

   E. Dia of Scoring Saw:   φ 180mm

   F.  Main Saw Motor Power: 15Hp

   G.Scoring Saw Motor Power: 3Hp

   H.Feeding Servo Motor Power: 1KW servo motor

   I.Working Pressure: 5-6kgs/cm2

 Control screen

PLC

Feeding part

German gear track.stable working without slip.

Main Saw blade

 Scoring saw blade

 Air-floating table

Copper wheel
