quality woodworking machinery supplier environmental-friendly for tenoning

Quick Details

Condition:New
Type:Table Panel Saw
Use:Woodworking
Style:Vertical
Place of Origin:Guangdong, China (Mainland)
Brand Name:Gewinn
Model Number:SW-400B
Usage:Wood cutting, Panel or door cutting
Voltage:380V/50HZ, 380V/50Hz
Power(W):5.5kw
Dimension(L*W*H):3130 x 3220 x 860mm
Weight:910kg
Certification:CE
Warranty:12 Months
After-sales Service Provided:Engineers available to service machinery overseas
Saw blade:Germany & Japanese
Saw blade cutting:0-45 degree tilting
Sliding table size:3000mm ( 3200 or 3800 for option )
Machine frame:Heavy duty
Saw system:High precision & stable cutting
Main saw power:5.5kw
Scoring saw power:0.75kw
Option:Protecting cover

Packaging & Delivery

Packaging Details:	Wooden case packing

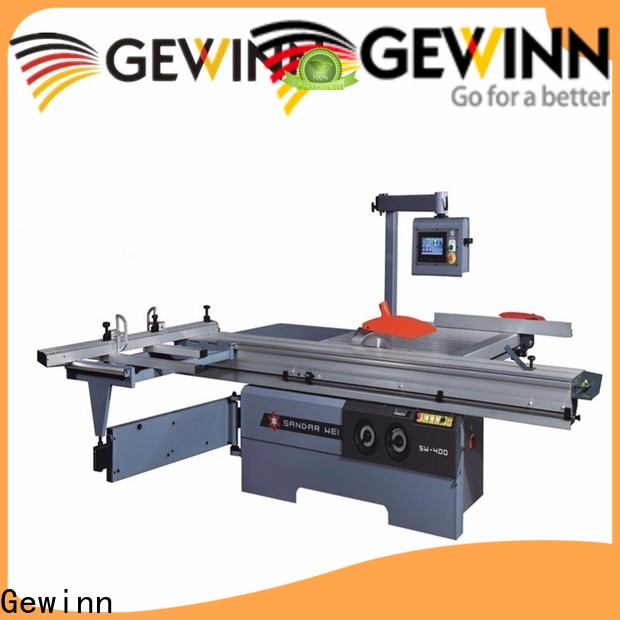

Gewinn quality woodworking machinery supplier environmental-friendly for tenoning-1

Usage:

The machine with heavy duty frame for supporting, ensure the machine with precise & smooth cutting. The saw blade can be adjust 0-45 degree tilting, suitable for customers required.

Parameter

Machine Parameter

Model	SW-400B		SW-400C
Main saw	Motor power: 5.5kw
	Saw blade diameter: Ø250-Ø400mm
	Saw bore diameter: Ø30mm
	Saw blade tilting: 0-45°		90°
	Speed: 3000/ 4000/ 5000r/min
	Max cutting height: 100mm
Scoring saw	Motor power: 0.75kw
	Saw blade diameter: Ø120mm
	Saw bore diameter: Ø22mm
	Speed: 8000r/min
Dust Extraction	Outlet diameter (safety hood): Ø60mm
	Outlet diameter: Ø120mm
Voltage	380V/ 50HZ/ 3phase
Stroke of sliding table	3000mm
Max stroke of rip saw fence	1200mm
Max stroke of cross-cut fence	3200mm
Dimension	3130 x 3220 x 860mm
Weight	910kg	910kg

Components

Gewinn quality woodworking machinery supplier environmental-friendly for tenoning-2

Optional cover

Gewinn quality woodworking machinery supplier environmental-friendly for tenoning-3

Strong sawing system Gewinn quality woodworking machinery supplier environmental-friendly for tenoning-4

Main saw blade & scoring saw blade

Gewinn quality woodworking machinery supplier environmental-friendly for tenoning-5

Related equipments

Gewinn quality woodworking machinery supplier environmental-friendly for tenoning-6

CNC sliding table saw

Gewinn quality woodworking machinery supplier environmental-friendly for tenoning-7

Computer panel saw

Gewinn quality woodworking machinery supplier environmental-friendly for tenoning-8

Edge banding machine

Gewinn quality woodworking machinery supplier environmental-friendly for tenoning-9

Multi spindle boring machine

Gewinn quality woodworking machinery supplier environmental-friendly for tenoning-10

CNC boring machine

Our Services

Before sale serice

1.Know cusomter’s work piece size and process required.

2.Supply suitable model for customer reference.

3.Supply freight information to customer if needed.

4.Confirm production time if order placed.

Machine manufacturing

Arrange production to factory, make sure machine will be finished before dead line.
Update production schedule to customer.
Test the machine and take video for customer to confirm the quality.
Arrange shipment after customer confirmed.

After-sale Service

1) The machine guarantee is 12 months.

2) 24 hours technical support by email or calling.

3) Friendly English version manual and operation video.

4)Engineers available to service machiner overseas.

5)Following the machine working regularly.
