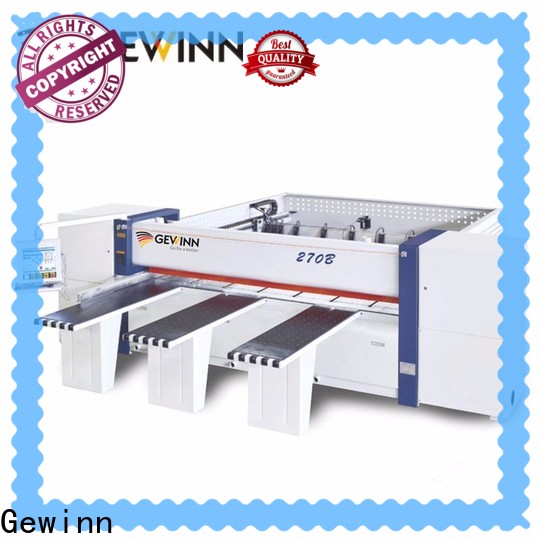

quality woodworking machinery supplier order now for cutting

Quick Details

Condition:New
Type:Table Panel Saw
Use:Woodworking
Style:Horizontal
Place of Origin:Guangdong, China (Mainland)
Usage:wood panel sawing
Voltage:220V/380V
Dimension(L*W*H):6650*6200*1525mm
Weight:4200kg
Certification:CE
Warranty:1 year
After-sales Service Provided:Engineers available to service machinery overseas
Control Screen:Taiwan ASK LCD
PLC:Japan Mitsubishi
Main saw motor:Italy motor
Scoring saw motor:Taiwan quality motor
Electronic protect:Taiwan AC contactor
Machine frame:one-stop finish
feeding part1:Japan servo motor
feeding part2:Switzerland gear reducer
feeding part3:high precision limit switch
warranty:1 year

Packaging & Delivery

Packaging Details:	standard packing
Delivery Detail:	within 30 days

Gewinn quality woodworking machinery supplier order now for cutting-1

Gewinn United is engaged in the exporting business in the filed of woodworking

machinery. well known the local information in the country of woodworking machine

in China. We promise only supply the good quality products with our best service.

Advantages

1.Japan Servo Motro equip with Switzerland gear reducer

2.Italy motor control sawing

3.Copper wheels for saw carriages moving

4.Taiwan ASK control screen

5.One-stop finished machine frame. prevent from out of shape

6.Quick change for saw blade system

Technical Data:

A. Max.Cutting Capacity: 3850*3850*80mm

B. Max.Cutting Speed: 50m/Min

C. Max.Feeding Speed: 40m/Min

D. Dia of Main Saw: φ 355

E. Dia of Scoring Saw: φ 180mm

F. Main Saw Motor Power: 15Hp

G.Scoring Saw Motor Power: 3Hp

H.Feeding Servo Motor Power: 1KW servo motor

I.Working Pressure: 5-6kgs/cm2

Control screen

Gewinn quality woodworking machinery supplier order now for cutting-2

PLC

Gewinn quality woodworking machinery supplier order now for cutting-3

Feeding part

Gewinn quality woodworking machinery supplier order now for cutting-4

German gear track.stable working without slip.

Gewinn quality woodworking machinery supplier order now for cutting-5

Main Saw blade

Gewinn quality woodworking machinery supplier order now for cutting-6

Scoring saw blade

Gewinn quality woodworking machinery supplier order now for cutting-7

Air-floating table

Gewinn quality woodworking machinery supplier order now for cutting-8

Gewinn quality woodworking machinery supplier order now for cutting-9

Copper wheel

Gewinn quality woodworking machinery supplier order now for cutting-10

Products

Gewinn quality woodworking machinery supplier order now for cutting-11

Gewinn quality woodworking machinery supplier order now for cutting-12

Gewinn quality woodworking machinery supplier order now for cutting-13

z******p

Gewinn woodworking cnc machine is professionally designed. Its design includes material design, system design, mechanical design and component structure design. Quality first is very important for Hanway

c******l

The components or parts used in Gewinn woodworking cnc machine are required to pass relevant requirements. They will be inspected or tested for strength, hardness, durability, and other mechanical properties using different testing methods. Maintaining a mutually beneficial relationship with customers is a part of our core values

g******y

Gewinn woodworking cnc machine goes through a complete design cycle. It includes drawing up specifications, conception&architecture of the mechanism, design and simulation of behavior with static, dynamic, thermal, etc. More CNC are applied in the secondary processing to meet high accuracy demands

f******g

Materials used for Gewinn woodworking cnc machine has been tested. The tests include toughness or brittleness testing, hardness testing, tensile testing, etc. Hanway has upgraded to become a high-tech enterprise

f******q

During the design stage, Gewinn woodworking cnc machine is exclusively designed adopting the most advanced technologies that are extensively applied in mechanical industry, such as energy-saving technology. Our vision is to promote auto-production line to optimize automatic production

y******k

This product has an outstanding quality that exceeds industry standards. We will be responsible for providing the competitive high quality products with reasonable price
