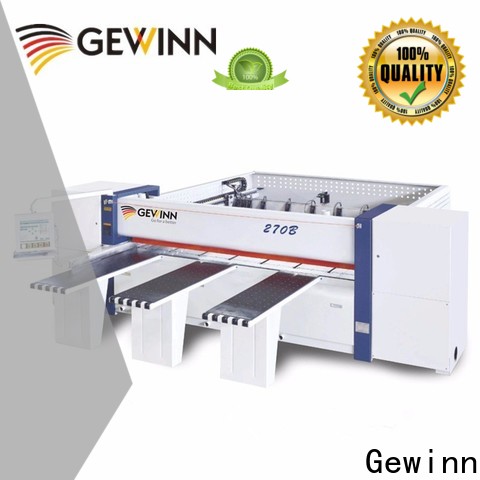

Gewinn woodworking machinery supplier easy-operation for bulk production

Quick Details

• Condition:New

• Type:Table Panel Saw

• Use:Woodworking

• Style:Horizontal

• Place of Origin:Guangdong, China (Mainland)

• Usage:wood panel sawing

• Voltage:220V/380V

• Dimension(L*W*H):6650*6200*1525mm

• Weight:4200kg

• Certification:CE

• Warranty:1 year

• After-sales Service Provided:Engineers available to service machinery overseas

• Control Screen:Taiwan ASK LCD

• PLC:Japan Mitsubishi

• Main saw motor:Italy motor

• Scoring saw motor:Taiwan quality motor

• Electronic protect:Taiwan AC contactor

• Machine frame:one-stop finish

• feeding part1:Japan servo motor

• feeding part2:Switzerland gear reducer

• feeding part3:high precision limit switch

• warranty:1 year

Packaging & Delivery

Components of  precision panel sawing machine

A- Scoring Saw

B - Swiss Rack

C - High Rigid Saw Car

D - Reducer

E - Imported Screen

F - Imported Feeding Device

G - Imported Cardboard

H - Mitsubishi PLC

Model Details of  precision panel sawing machine

 Specification of  precision panel sawing machine

   A. Max.Cutting Capacity: 2650*2650*80mm

    B. Max.Cutting Speed: 40m/Min

   C. Max.Feeding Speed: 40m/Min

   D. Dia of Main Saw: φ 355

   E. Dia of Scoring Saw:   φ 180mm

   F.  Main Saw Motor Power: 15Hp

   G.Scoring Saw Motor Power: 3Hp

   H.Feeding Servo Motor Power: 1KW servo motor

   I.Working Pressure: 5-6kgs/cm2

Benefits you can count on

• Equipped with Taiwan ASK touching LCD (Liquid Crystal Display) which ensure an easy control.

• Equipped with Japan Mitsubishi PLC (FX3U) and Mitsubishi Servo controller, ensure the machine with quick reaction and stable operation.

• Taiwan AC contactor to protect the electronic parts.

•  Main saw device is equipped with Italy compressed motor ensure powerful and stable operation.

• Feeding device equipped with imported gear reducer (Switzerland /German) and German gear track, assure precise locating feeding position.

• Equipped with Servomechanism with Japan servo motor which ensure precise processing.

• Imported bearing ensure more durable working.

• Optional Panel utilized optimizing software which can calculate the best cutting path, ensure the max utilization of Panel.

• Optional cover (HH-PRO-HC series) for better working environment.

Advantage of  precision panel sawing machine

Factory

Application

Structure

 Gewinn United is engaged in the exporting business in the filed of woodworking machinery. well known the local information in the country of woodworking machine in China. We promise only supply the good quality products with our best service.
