Gewinn woodworking machinery supplier environmental-friendly for bulk production

Quick Details

• Condition:New

• Type:Band Saw

• Use:Woodworking

• Style:Horizontal

• Place of Origin:Guangdong, China (Mainland)

• Model Number:MJ3971AX400

• Usage:Solid wood cutting

• Voltage:380V

• Power(W):18.5KW

• Dimension(L*W*H):3000x2230x2050mm

• Weight:1950KG

• Certification:CE

• Warranty:1 year

• After-sales Service Provided:Engineers available to service machinery overseas

• Max working size:400x300mm

• Dia of saw wheel:711mm

• Hydraulic pressure:55kg/cm2

• Saw kerf:1.2-2.2mm

• width of convey belt:400mm

• feeding speed:0-18m/min

• saw wheel elevate motor:0.18kw

• distance from saw blade to worktable:3-200mm

• saw blade size:4572x27x0.9mm or 4572x41x1.27mm

• cooling:atomizing

Packaging & Delivery

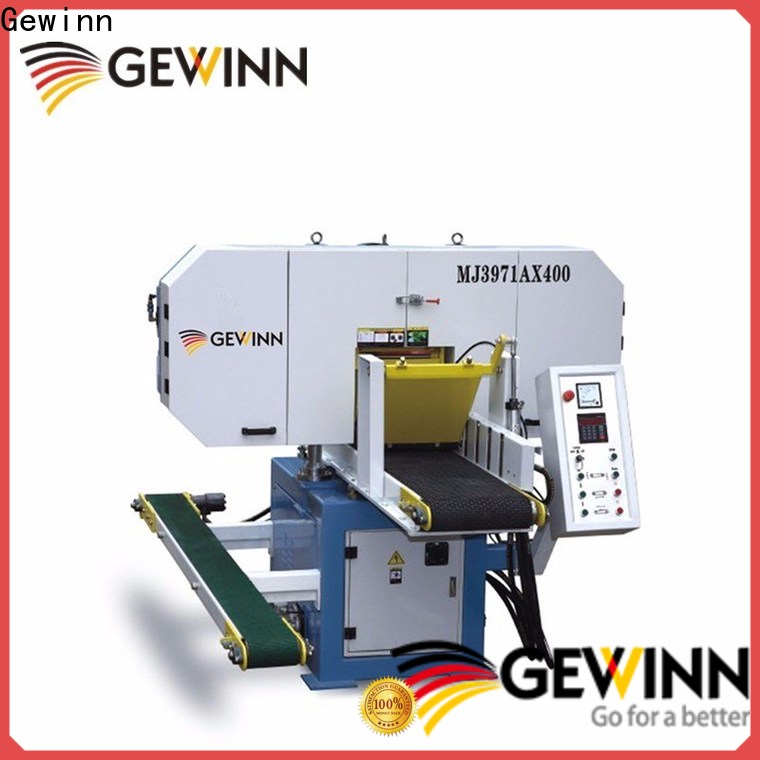

This wood machinery band saw for hard wood   is designed for Solid wood sawing. aim at cutting wood panel from the original wooden pillar. to make the beautiful and smooth wood panel.

Feature

1.Microcomputer operator interface. easy control.

2.High precise encoder and rigid ball screw rod to control sawing width.

3.System can save information.

4.PLC system control.

5.Hydraulic saw blade tension auto-compensation system ensure the saw blade is always

staying a best tension status and provide a longer service life.

6.Convey belt is driven by hydraulic or electric motor.

7.Saw route within 1.1-1.6mm. 20% saver than others.

8.Atomizing water-cooling device.

Machine device

1.Controlling

2.Special designed saw clamp

3.Atomizing water-cooling device

4.Protecting device

5.Stainless steel water box

6.Germany bearing

Technical Parameter of  wood machinery band saw for hard wood

     Gewinn United is engaged in the exporting business in the filed of woodworking

machinery. well known the local information in the country of woodworking machine in China. We promise only supply the good quality products with our best service.
