quality woodworking machinery supplier for grooving and moulding

Quick Details

Condition:New
Place of Origin:Guangdong, China (Mainland)
Model Number:NE550
After-sales Service Provided:Engineers available to service machinery overseas
Touching control screen:Delta
PLC&Fenquency:Delta
pneumatic component:Korean imported pneumatc device
End-trimming:American "Parker"
trimming motor:Italy "Teknomotor" high speed motor
low voltage apparatus:Schneider
tracking wire:Germany wire
pathway:extra heavy
working voltage:380V/50HZ/3 phase
heat-up time:20 minutes

Packaging & Delivery

Packaging Details:	standard export packing/as you require

Gewinn woodworking machinery supplier for grooving and moulding-1

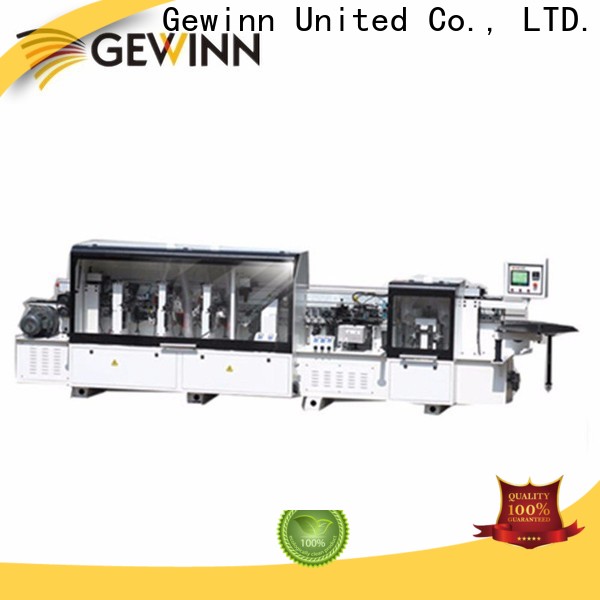

This model of edge banding machine include Pre-milling. Edge banding. End-trimming. Rough trimming. Profile trimming. Scraper. Buffing these process. make sure the wood pieces can be processed perfectly.

Gewinn woodworking machinery supplier for grooving and moulding-2

Equipment Details

1."Delta" PLC system control and HMI control box with "Delta" toucing screen. easy to operate.

Gewinn woodworking machinery supplier for grooving and moulding-3

2.Double layers feeding table. prevent the heat from the glue box effectively.

5.5L gluing box and special paint coat. shorten the melting time.

Gewinn woodworking machinery supplier for grooving and moulding-5

3.Korean pneumatic device. make sure the machine can work under any weather.

Gewinn woodworking machinery supplier for grooving and moulding-6

4.American "Parker" End-trimming unit and Germany wire. assure precisous cutting and the edge banding machine stable working for long time.

Gewinn woodworking machinery supplier for grooving and moulding-7

Gewinn woodworking machinery supplier for grooving and moulding-8

5. Rough and Profile trimming units are individually controlled by Italy “Teknomotor”

high speed motors and micrometric adjustment with Germen “SIKO” numerical digital

read-out. which ensure the edge banding machine precise trimming effect and easy adjusting.

Gewinn woodworking machinery supplier for grooving and moulding-9

Optional device

1.Corner Rounding device. individually controlled by Italy "Teknomotor" high speed motor

Gewinn woodworking machinery supplier for grooving and moulding-10

2.Optional Atomizing unit. prevent the hot melting glue remaining on the board.

Gewinn woodworking machinery supplier for grooving and moulding-11

Technical Parameter

Min workpiece width	60mm
Min workpiece length	100mm
workpiece thickness	10-60mm
Edge Height	15-65mm
Edge thickness	0.4-3mm
Conveyar speed	12-16-20m/min
Total power	14.7KW
Compressed Air Pressure	6.5kg/cm3
Total weight	1950kg
Over size	5400x1000x1600mm

Gewinn woodworking machinery supplier for grooving and moulding-12

Gewinn woodworking machinery supplier for grooving and moulding-13

Application

Gewinn woodworking machinery supplier for grooving and moulding-14

Gewinn woodworking machinery supplier for grooving and moulding-15
