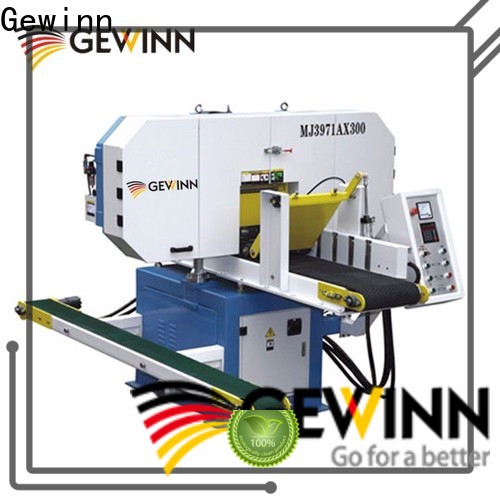

Gewinn woodworking machinery supplier series

Quick Details

• Condition:New

• Type:Band Saw

• Use:Woodworking

• Style:Horizontal

• Place of Origin:Guangdong, China (Mainland)

• Model Number:MJ3971AX300

• Usage:Solid wood cutting

• Voltage:380V

• Power(W):15KW

• Dimension(L*W*H):3000x2230x2050mm

• Weight:1800KG

• Certification:CE

• Warranty:1 year

• After-sales Service Provided:Engineers available to service machinery overseas

• Max working size:300x300mm

• Dia of saw wheel:711mm

• Hydraulic pressure:55kg/cm2

• Saw kerf:1.2-2.2mm

• width of convey belt:300mm

• feeding speed:0-18m/min

• saw wheel elevate motor:0.18kw

• distance from saw blade to worktable:3-200mm

• saw blade size:4572x27x0.9mm or 4572x41x1.27mm

• cooling:atomizing

Packaging & Delivery

panel from the original wooden pillar. to make the beautiful and smooth wood panel.

Components of  startrite bandsaw

A - Unit Clamp

B - Control Panel

C - Rear Roller

D - Atomizing Cooling Saw

E - Front Roller

F - Saw Wheel Motor

for quick and accurate saw blade position,ensure a simple and convenient operation.

2.High-precision rotary encoders with precision ball screw, which achieves low noise, small

torque fluctuations and long-term maintenance, also ensure the greater accuracy of sawing thickness.

3.Assisted material revert system, which can ensure a higher efficiency and more energy saved.

4.The PLC integrated control system, assures a simple and steady operation.

5.Automatic hydraulic saw blade tensioning compensation system to ensure the best tension state of the working saw blade and extend the useful life of the saw blade.

6.The conveyor belt is driven by a hydraulic or electric motor, which provides steady operation, constant and powerful driving power, so as to ensure the work piece is well shaped and smooth.

7.Specially designed with multi units of pinch roller setting, which ensure the work piece can be

firmly pressed when cutting, it is also a guarantee of operation safety.

8.Saw wheel is made by medium carbon steel,  convex saw wheel avoids saw

blade sliding off.

9.Water-cooling system provides high efficiency cooling and cleans wood dust

on saw teeth

10.The thickness tolerance is only 1.1-1.6mm, compared with other processing methods,

it can save approximately 20% of material, and this is the most effective way of

reducing costs.

Package of  startrite bandsaw

     Gewinn United is engaged in the exporting business in the filed of woodworking

machinery. well known the local information in the country of woodworking machine in China. We promise only supply the good quality products with our best service.
