high-end woodworking machinery supplier top-brand

Quick Details

Condition:New
Place of Origin:Guangdong, China (Mainland)
Model Number:NE550
After-sales Service Provided:Engineers available to service machinery overseas
Touching control screen:Delta
PLC&Fenquency:Delta
pneumatic component:Korean imported pneumatc device
End-trimming:American "Parker"
trimming motor:Italy "Teknomotor" high speed motor
low voltage apparatus:Schneider
tracking wire:Germany wire
pathway:extra heavy
working voltage:380V/50HZ/3 phase
heat-up time:20 minutes

Packaging & Delivery

Packaging Details:	standard export packing/as you require

Gewinn woodworking machinery supplier top-brand-1

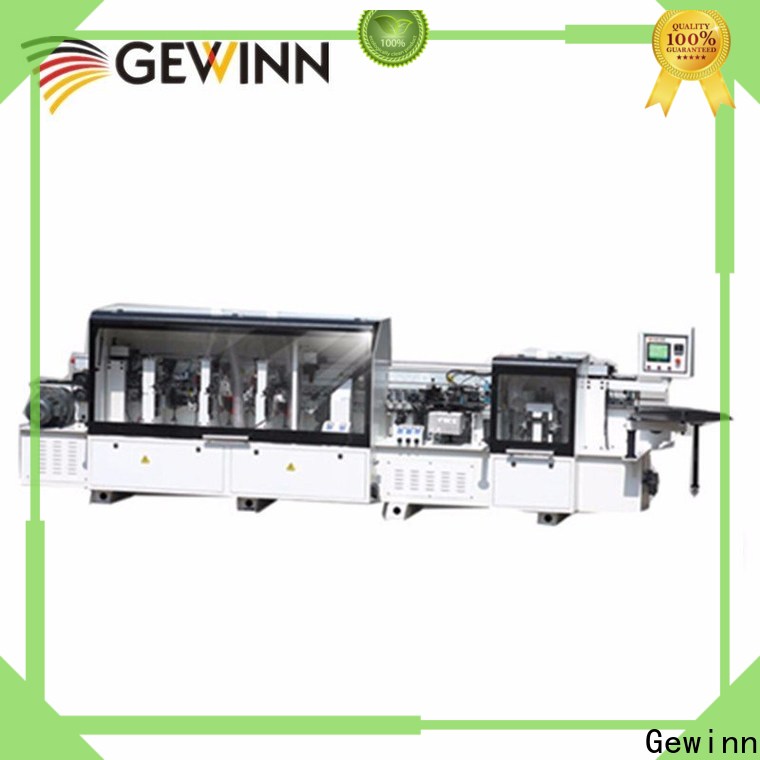

This model of edge banding machine include Pre-milling. Edge banding. End-trimming. Rough trimming. Profile trimming. Scraper. Buffing these process. make sure the wood pieces can be processed perfectly.

Gewinn woodworking machinery supplier top-brand-2

Equipment Details

1."Delta" PLC system control and HMI control box with "Delta" toucing screen. easy to operate.

Gewinn woodworking machinery supplier top-brand-3

2.Double layers feeding table. prevent the heat from the glue box effectively.

5.5L gluing box and special paint coat. shorten the melting time.

Gewinn woodworking machinery supplier top-brand-5

3.Korean pneumatic device. make sure the machine can work under any weather.

Gewinn woodworking machinery supplier top-brand-6

4.American "Parker" End-trimming unit and Germany wire. assure precisous cutting and the edge banding machine stable working for long time.

Gewinn woodworking machinery supplier top-brand-7

Gewinn woodworking machinery supplier top-brand-8

5. Rough and Profile trimming units are individually controlled by Italy “Teknomotor”

high speed motors and micrometric adjustment with Germen “SIKO” numerical digital

read-out. which ensure the edge banding machine precise trimming effect and easy adjusting.

Gewinn woodworking machinery supplier top-brand-9

Optional device

1.Corner Rounding device. individually controlled by Italy "Teknomotor" high speed motor

Gewinn woodworking machinery supplier top-brand-10

2.Optional Atomizing unit. prevent the hot melting glue remaining on the board.

Gewinn woodworking machinery supplier top-brand-11

Technical Parameter

Min workpiece width	60mm
Min workpiece length	100mm
workpiece thickness	10-60mm
Edge Height	15-65mm
Edge thickness	0.4-3mm
Conveyar speed	12-16-20m/min
Total power	14.7KW
Compressed Air Pressure	6.5kg/cm3
Total weight	1950kg
Over size	5400x1000x1600mm

Gewinn woodworking machinery supplier top-brand-12

Gewinn woodworking machinery supplier top-brand-13

Application

Gewinn woodworking machinery supplier top-brand-14

Gewinn woodworking machinery supplier top-brand-15
