high-end woodworking machinery supplier top-brand for cutting

Quick Details

Condition:New
Place of Origin:Guangdong, China (Mainland)
Model Number:NE550
After-sales Service Provided:Engineers available to service machinery overseas
Touching control screen:Delta
PLC&Fenquency:Delta
pneumatic component:Korean imported pneumatc device
End-trimming:American "Parker"
trimming motor:Italy "Teknomotor" high speed motor
low voltage apparatus:Schneider
tracking wire:Germany wire
pathway:extra heavy
working voltage:380V/50HZ/3 phase
heat-up time:20 minutes

Packaging & Delivery

Packaging Details:	standard export packing/as you require

Gewinn woodworking machinery supplier top-brand for cutting-1

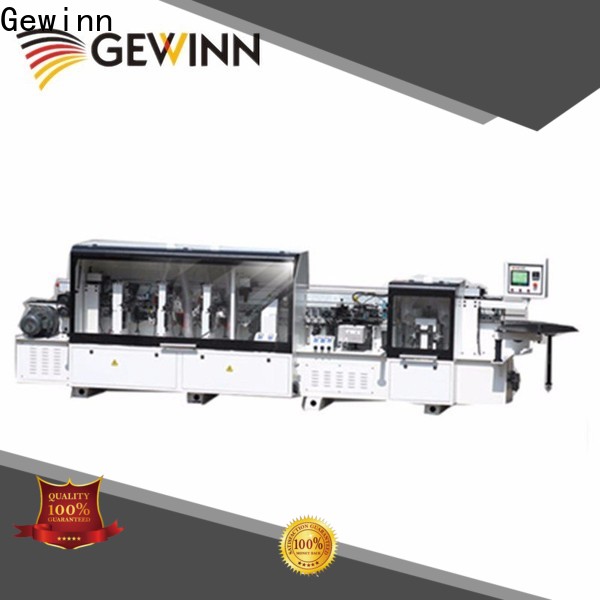

This model of edge banding machine include Pre-milling. Edge banding. End-trimming. Rough trimming. Profile trimming. Scraper. Buffing these process. make sure the wood pieces can be processed perfectly.

Gewinn woodworking machinery supplier top-brand for cutting-2

Equipment Details

1."Delta" PLC system control and HMI control box with "Delta" toucing screen. easy to operate.

Gewinn woodworking machinery supplier top-brand for cutting-3

2.Double layers feeding table. prevent the heat from the glue box effectively.

5.5L gluing box and special paint coat. shorten the melting time.

Gewinn woodworking machinery supplier top-brand for cutting-5

3.Korean pneumatic device. make sure the machine can work under any weather.

Gewinn woodworking machinery supplier top-brand for cutting-6

4.American "Parker" End-trimming unit and Germany wire. assure precisous cutting and the edge banding machine stable working for long time.

Gewinn woodworking machinery supplier top-brand for cutting-7

Gewinn woodworking machinery supplier top-brand for cutting-8

5. Rough and Profile trimming units are individually controlled by Italy “Teknomotor”

high speed motors and micrometric adjustment with Germen “SIKO” numerical digital

read-out. which ensure the edge banding machine precise trimming effect and easy adjusting.

Gewinn woodworking machinery supplier top-brand for cutting-9

Optional device

1.Corner Rounding device. individually controlled by Italy "Teknomotor" high speed motor

Gewinn woodworking machinery supplier top-brand for cutting-10

2.Optional Atomizing unit. prevent the hot melting glue remaining on the board.

Gewinn woodworking machinery supplier top-brand for cutting-11

Technical Parameter

Min workpiece width	60mm
Min workpiece length	100mm
workpiece thickness	10-60mm
Edge Height	15-65mm
Edge thickness	0.4-3mm
Conveyar speed	12-16-20m/min
Total power	14.7KW
Compressed Air Pressure	6.5kg/cm3
Total weight	1950kg
Over size	5400x1000x1600mm

Gewinn woodworking machinery supplier top-brand for cutting-12

Gewinn woodworking machinery supplier top-brand for cutting-13

Application

Gewinn woodworking machinery supplier top-brand for cutting-14

Gewinn woodworking machinery supplier top-brand for cutting-15

l******h

The design of Gewinn woodworking machinery supplier shows advancement and professionalism. Its design has taken mechanical functions, efficiency, materials, and energy factors into account. Imported high-quality parts are adapted for SUMWIC machines

e******y

Gewinn woodworking machinery supplier has to go through diverse tests. These tests include fatigue resistance testing, dimensional stability testing, chemical resistance testing, and mechanical testing. SUMWIC decoilers with extended function are suitable for coils of different sizes

e******x

A series of manufacturing steps are covered in Gewinn woodworking machinery supplier. It has to be stamped, cut, coated, painted, dried, and assembled by skillful mechanical technicians. SUMWIC machines simultaneously achieve size reduction, high performance and low cost

b******d

The design of Gewinn woodworking machines for sale is conducted by professional mechanical engineers. Its moving parts, such as the gears, levels, and pistons in the engine and hydraulic systems are carefully designed after considering numerous factors. SUMWIC winding machine can produce accurate output pulses

h******w

Gewinn woodworking machinery supplier is manufactured with various sophisticated mechanical components. These components are specialized drills, piston, motors, rollers, and engines which are all delicately made. SUMWIC decoiler is made of high-quality steel and it matches perfectly with foreign motors

x******y

This product has established a reputation for quality because appropriate quality management systems conforming to the International Standard ISO 9001 requirements are established and implemented for its production. Imported high-quality parts are adapted for SUMWIC machines
