high-effciency wood edgebander equipment fast delivery machine furniture

Company Advantages
1. Gewinn wood edge planer equipments is produced combining the decoration technique with manual finishing drawing. When the product is fired, the drawing will stick to the glaze tightly, and hence to create different patterns. Made using the high-quality raw material, these wood processing machines are durable in quality
2. This product can provide customers with more predictable economic benefits. In order to ensure the long life and flawless performance, these high frequency wooden frame jointing machines are manufactured under the supervision of our team of experts using premium grade factor inputs and advanced technology in compliance with the set quality standards
3. wood edgebander equipment has many superior benefits, such as the wood edge planer equipments . Our offered range encompasses solid wood machine, panel machine, small simple machine, customized solution as well as tools and accessories
4. Compared with the other similar products, wood edgebander equipment exhibited features like wood edge planer equipments . Since our commencement in the year 2013, we, Gewinn United, are well-known in the industry as one of the leading organizations engaged in manufacturing and supplying a commendable range of woodworking machine
5. Compared with existing technologies, the wood edgebander equipment has advantages of wood edge planer equipments . Gewinn united is a well-known supplier and exporter of the technically superior Gewinn wood cutting machine which has been designed to perform the heavy duty

Quick Detail

Condition:New
Place of Origin:Guangdong, China (Mainland)
Model Number:NE400
After-sales Service Provided:Engineers available to service machinery overseas
Touching control screen:Delta
PLC&Fenquency:Delta
pneumatic component:Korean imported pneumatc device
End-trimming:American "Parker"
trimming motor:Germany high speed motor
low voltage apparatus:Schneider
tracking wire:Germany wire
pathway:extra heavy
working voltage:380V/50HZ/3 phase
heat-up time:20 minutes

Packaing & Deliery

Packaging Details:	standard export packing/as you require

Product Description

high-effciency wood edgebander equipment fast delivery machine furniture-1

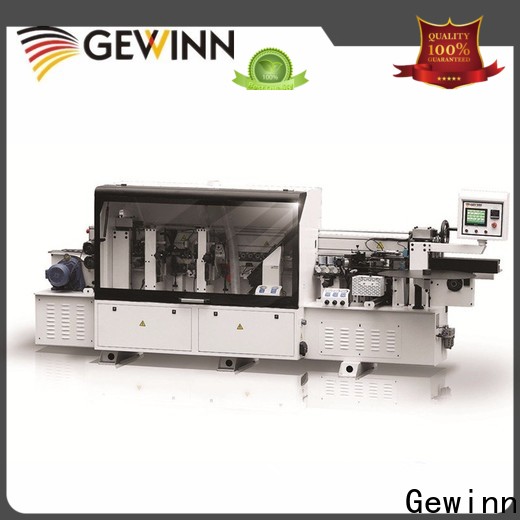

Automatic edge banding machine

This Automatic edge banding machine is can band PVC, Veneer tape.Suitable for home use cabinet, closet, drawer and office furniture manufacturing. Precise trimming unit is helpful to make smooth product.

MAIN TITLEModel Details of Wood Edge Banding

high-effciency wood edgebander equipment fast delivery machine furniture-2
Parameter of wood edge banding

Parameter of Wood Edge Banding

Specification		NE550R	NE500R	NE400R	NE550	NE450	NE500	NE400	NE300	NE200
Min. Effectiven Workpiece Width		60mm
Min. Workpiece Length		150mm			100mm
Min. Workpiece Size (All Size)		100×150mm			100×100mm
Workpiece Thickness		10-60mm
Edge Height		15-65mm
Edge Thickness		0.4~3mm
Conveyor Speed		12~16~20 m/Min
Total Power		17KW	11.5KW	10KW	14.7KW	12.5KW	10.5KW	8KW	8KW	7.3KW
Compressed Air Pressure		6.5kg/cm³
Voltage		380V/50Hz/3phase
Total Weight		2450KG	2150KG	1900KG	1950KG	1800KG	1650KG	1500KG	1350KG	1150KG
Overall Size	L	6610mm	5660mm	5210mm	5400mm	5000mm	4500mm	4000mm	3550mm	2910mm
	W X H	1000×1600mm								1000×1420mm

Benefits YOU Can Count On

-Equipped with ‘DELTA’ PLC system and HMI controlled with touch screen, assure a simple and steady operation.

-Equipped with Korean pneumatic device, ensures all-weather adaptability under different temperature conditions.

-Banding of edges up to 3 mm in thickness

-Double layers edge feeding table, which protects the sealing edge by reducing the heat from the glue melting box.

-Available with a board pre-heating device, which ensures a better glue joint effect especially in low working temperature environment.

-Equipped with American ‘Parker’ End-trimming unit, assure precise end trimming and perfect results.

-Rough and Profile trimming units are individually controlled by Italy ‘Teknomotor’high speed motors and micrometric adjustment with Germen “SIKO” numerical digital read-out.

-Optional high speed pre milling device for a better edging effect. (two motors are individually controlled by frequency converter, with two diamond saws, sawing height:60mm)

-Corner Rounding device, which is individually controlled by Italy ‘Teknomotor ‘high speed motors and micrometric adjustment with Germen “SIKO” numerical digital read-out.

-Optional Atomizing unit, which can prevent the hot melting glue remaining on the board.

Advantages of Wood Edge Banding

high-effciency wood edgebander equipment fast delivery machine furniture-3

Factory

high-effciency wood edgebander equipment fast delivery machine furniture-6

Packaing &Shipping

high-effciency wood edgebander equipment fast delivery machine furniture-7

Application

high-effciency wood edgebander equipment fast delivery machine furniture-8

Structure of Wood Edge Banding

high-effciency wood edgebander equipment fast delivery machine furniture-9

A- Gluing System

B - Presser Device

C - End Trimming Device

D - Rough Trimming Device

E - Profile Trimming Device

F - Scraper Device

G - Corner Rounding Device

H - Buffing Device

Video

Sample display

high-effciency wood edgebander equipment fast delivery machine furniture-10

high-effciency wood edgebander equipment fast delivery machine furniture-11

high-effciency wood edgebander equipment fast delivery machine furniture-12

high-effciency wood edgebander equipment fast delivery machine furniture-13

Company Features
1. Gewinn United Co., LTD. pays attention to the wood edgebander equipment and is influential in the business.
2. Gewinn United Co., LTD. has advanced processing technology and perfect product quality management system.
3. The service notion of wood edge planer equipments in Gewinn United Co., LTD. emphasize on edge banding machinery . Get quote!

o******u

The raw materials Gewinn edge banding machinery uses is selected by professional experts. With a patented design structure, it is superior in heat dissipation

z******r

Gewinn wood edgebander equipment conforms to the product design specifications. The product features quick and easy installation

p******e

Strong design attitude and a personality are added to wood edge planer equipments. The product features quick and easy installation

l******f

Gewinn wood edge planer equipments is manufactured by dedicated workforces. It is manufactured in our factory which has been certified under ISO9001:2000 and ISO14001:1996

o******d

Gewinn wood edge planer equipments is upgraded from time to time as per the latest technological innovations. The product is environmental-friendly, meeting the requirements of sustainable living

g******r

The most important difference between this product and other products is the long-term service life. Processed by one-time injection molding waterproof treatment, it has a waterproof level of IP65
