high-end woodworking equipment easy-installation for bulk production

Quick Details

Condition:New
Type:Table Panel Saw
Use:Woodworking
Style:Horizontal
Place of Origin:Guangdong, China (Mainland)
Usage:wood panel sawing
Voltage:380V/220V
Dimension(L*W*H):5790*6200*1525mm
Weight:4200kg
Certification:CE
Warranty:1 year
After-sales Service Provided:Engineers available to service machinery overseas
Control Screen:Taiwan ASK LCD
PLC:Japan Mitsubishi
Main saw motor:Italy motor
Scoring saw motor:Taiwan quality motor
Electronic protect:Taiwan AC contactor
Machine frame:one-stop finish
feeding part1:Japan servo motor
feeding part2:Switzerland gear reducer
feeding part3:high precision limit switch
warranty:1 year

Packaging & Delivery

Packaging Details:	standard packing
Delivery Detail:	within 30 days

high-end woodworking equipment easy-installation for bulk production-1

Gewinn United is engaged in the exporting business in the filed of woodworking

machinery. well known the local information in the country of woodworking machine

in China. We promise only supply the good quality products with our best service.

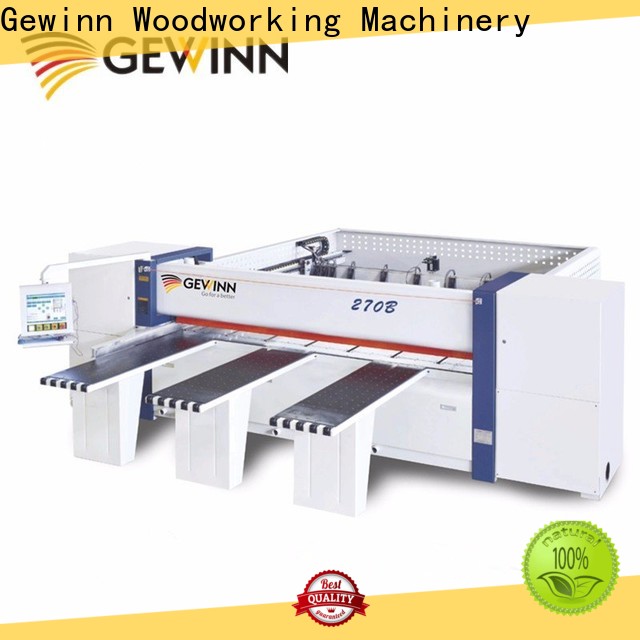

This beam saw is suitalb for big size panel cutting, with auto feeding clamp and air floating

table, easy for users to move the panel before & after cutting. The PLC system can is helpful

to assure precise feeding and cutting.

Advantage

1.Japan servo motor equip with Switerland gear reducer

2.With dust cover to protect working environment

3.with emergency switch to protect worker

4.German gear track

5.Emergency switch

6.Pusher conveying on rack with pionion.cutting precisely

Specification of beam saw

HI-SPEED COMPUTER PANDEL SAW	HH-PRO-12-HC
Max cutting depth	100mm
Max cutting length	3850mm
Main saw blade	Φ405mm
Main saw spindle	Φ30mm
Speed of main saw	4800r/min
Scoring saw blade	Φ180mm
Spindle of Scoring saw blade	Φ30
Speed of Scoring saw blade	6500r/min
cutting speed	0-50m/min
return speed	80m/min
Main saw motor	20HP (25HP for option)
Saw carriage motor	3HP
Blower motor	5HP
Auto-feeding system	2kw AC servo motor
Auto-feeding speed	0-60m/min
Working air-pressure	7kg/cm2
Table height	920mm
Dimension (LWH)	665062001525mm
Net weight	4800kg
Gross weight	5400kg

Detail Parts Introduction

1.Taiwan ASK LCD control screen

high-end woodworking equipment easy-installation for bulk production-2

2.Japan Mitsubishi PLC

high-end woodworking equipment easy-installation for bulk production-3

3.Feeding parts

high-end woodworking equipment easy-installation for bulk production-4

German gear track.stable working without slip.

high-end woodworking equipment easy-installation for bulk production-5

4.Sawing device

high-end woodworking equipment easy-installation for bulk production-6

Scoring saw blade

high-end woodworking equipment easy-installation for bulk production-7

5.Emergency switch

high-end woodworking equipment easy-installation for bulk production-8

6.Durable copper wheel for saw carriage moving

high-end woodworking equipment easy-installation for bulk production-9

7.Air-floating table with steel ball

high-end woodworking equipment easy-installation for bulk production-10

Product

high-end woodworking equipment easy-installation for bulk production-11

high-end woodworking equipment easy-installation for bulk production-12

high-end woodworking equipment easy-installation for bulk production-13
