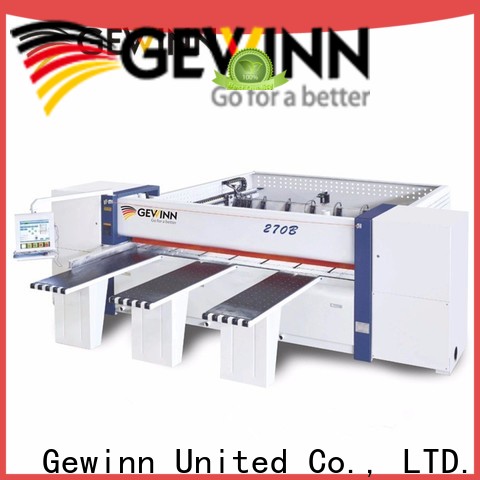

high-end woodworking equipment easy-operation

Quick Details

Condition:New
Type:Table Panel Saw
Use:Woodworking
Style:Horizontal
Place of Origin:Guangdong, China (Mainland)
Usage:wood panel sawing
Voltage:220V/380V
Dimension(L*W*H):6650*6200*1525mm
Weight:4200kg
Certification:CE
Warranty:1 year
After-sales Service Provided:Engineers available to service machinery overseas
Control Screen:Taiwan ASK LCD
PLC:Japan Mitsubishi
Main saw motor:Italy motor
Scoring saw motor:Taiwan quality motor
Electronic protect:Taiwan AC contactor
Machine frame:one-stop finish
feeding part1:Japan servo motor
feeding part2:Switzerland gear reducer
feeding part3:high precision limit switch
warranty:1 year

Packaging & Delivery

Packaging Details:	standard packing
Delivery Detail:	within 30 days

high-end woodworking equipment easy-operation-1

Gewinn United is engaged in the exporting business in the filed of woodworking machinery. well known the local information in the country of woodworking machine in China. We promise only supply the good quality products with our best service.

Advantages

1.Japan Servo Motro equip with Switzerland gear reducer

2.Italy motor control sawing

3.Copper wheels for saw carriages moving

4.Taiwan ASK control screen

5.One-stop finished machine frame. prevent from out of shape

Technical Data:

A. Max.Cutting Capacity: 2650*2650*80mm

B. Max.Cutting Speed: 40m/Min

C. Max.Feeding Speed: 40m/Min

D. Dia of Main Saw: φ 355

E. Dia of Scoring Saw: φ 180mm

F. Main Saw Motor Power: 15Hp

G.Scoring Saw Motor Power: 3Hp

H.Feeding Servo Motor Power: 1KW servo motor

I.Working Pressure: 5-6kgs/cm2

Control screen

high-end woodworking equipment easy-operation-2

PLC

high-end woodworking equipment easy-operation-3

Feeding part

high-end woodworking equipment easy-operation-4

German gear track.stable working without slip.

high-end woodworking equipment easy-operation-5

Main Saw blade

high-end woodworking equipment easy-operation-6

Scoring saw blade

high-end woodworking equipment easy-operation-7

Air-floating table

high-end woodworking equipment easy-operation-8

high-end woodworking equipment easy-operation-9

Copper wheel

high-end woodworking equipment easy-operation-10

high-end woodworking equipment easy-operation-11

high-end woodworking equipment easy-operation-12

high-end woodworking equipment easy-operation-13

high-end woodworking equipment easy-operation-14

k******l

Gewinn woodworking cnc machine is professionally designed. Its design includes material design, system design, mechanical design and component structure design. Effective quality management system can ensure high quality and stability of products continuously

l******v

The components or parts used in Gewinn woodworking equipment are required to pass relevant requirements. They will be inspected or tested for strength, hardness, durability, and other mechanical properties using different testing methods. Our mission is to provide solutions for high quality casting products with our professional team and advanced technology

a******t

Gewinn woodworking cnc machine goes through a complete design cycle. It includes drawing up specifications, conception&architecture of the mechanism, design and simulation of behavior with static, dynamic, thermal, etc. All our products have passed the certificated qualification of ISO9001 and IATF16949

k******i

Materials used for Gewinn woodworking equipment has been tested. The tests include toughness or brittleness testing, hardness testing, tensile testing, etc. Our mission is to provide solutions for high quality casting products with our professional team and advanced technology

z******o

During the design stage, Gewinn woodworking equipment is exclusively designed adopting the most advanced technologies that are extensively applied in mechanical industry, such as energy-saving technology. Hanway can offer customized service according to customers' needs

c******r

This product has an outstanding quality that exceeds industry standards. Quality first is very important for Hanway
