high-quality woodworking equipment easy-installation for customization

Application Scope

Gewinn's woodworking machine is widely used in the Manufacturing Machinery industry.Gewinn is dedicated to providing professional, efficient and economical solutions for customers, so as to meet their needs to the greatest extent.

Company Advantages
1. A wide range of tests for Gewinn woodworking machines for sale has been conducted. It has been tested in some aspects such as circuit board, plugs, voltage, frequency, etc.
2. The product has excellent impact toughness. Its heavy metal materials are able to resist impulse load and shock load without cracking.
3. Gewinn United Co., LTD. has won strong support of the majority of customers.
4. The product is far ahead of the similar products regarding the market foreground.

Quick Details

Condition:New
CNC or Not:CNC
Motor Type:Delta
Spindle Speed:12000r/min
Place of Origin:Guangdong, China (Mainland)
Model Number:SKD-85
Voltage:380V 50HZ, 380V/50HZ
Power(W):14kw
Weight:2300kg
Dimension(L*W*H):2800x2300x1700mm
Certification:ISO9001:2008
Warranty:1 year
After-sales Service Provided:Engineers available to service machinery overseas
Machine frame:Heavy duty
Processing:Horizonta & Vertical
Control system:German DB CNC system
Processing data:Support CAD imput
Servomotor:Delta
Electric appliances:Schneider & Taiwan imported
Pneumatic device:Taiwan imported
Moving guide:Taiwan high precision guide
Delivery Detail:within 35 days after 30% downpayment, 70% before delivery

Packaging & Delivery

Packaging Details:	EPE packing with metal plate in the bottom
Delivery Detail:	within 35 days

Product Description

This woodworking CNC boring machine is applicable for drilling for cupboard doors,furniture industry, decorative material,cabinet door,computer table, cabinets and panels,plastic fabrication,model,art crafts,musical instrument, plate.with computer control and automatic feeding & drilling,easy for operating.

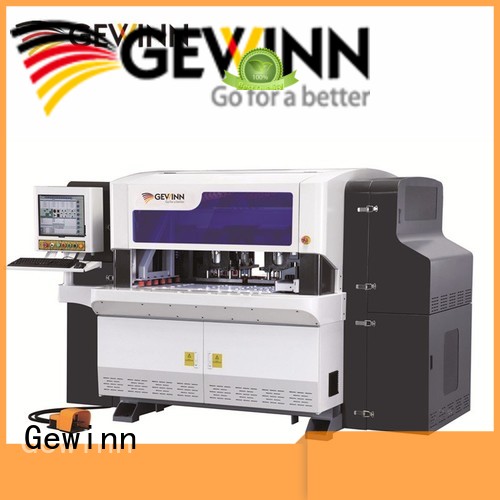

Model Details of woodworking CNC boring machine
high-quality woodworking equipment easy-installation for customization-1

Benefits you can count on

-Equipped with German CNC control system and integrated CAM software can make image edit for the work pieces, generating NC program directly for processing.

-Processing files can be uploaded automatically by scanning bar code, generating NC program for processing.

-Able to connect with management software, achieve auto operating with digital control.

-Advanced CNC program designed, assure feeding device and drilling device are working synchronously during processing, ensure efficient processing.

-Equipped with German CNC system. Image-Text inputting interface, CAD drilling data, ensure easy control. Management software can be customized upon customers’ producing requirements.

-Driving system: Equipped with Delta servomotor, imported gear and rack, Taiwan strong linear guide and carriage, with oil supplying device for dust removing and lubricating.

-High flexibility due to the proven exchangeable drilling block system. Equipped with Auto side aligning device which is driven by brake motor and plus probe for work piece movement controlling, adapting to the positioning requirement of different work piece width.

-Equipped with auto clamping and feeding device, ensure automatic drilling by processing program.

-Auto pressing device: The pressing and loosening of the work pieces are controlled by computer program, in order to satisfy the feeding and drilling.

Parameter

Parameter of woodworking CNC boring machine

Working stroke & Speed	X axis: 1250mm Speed: 45m/min
	Y axis: 1490mm Speed: 45m/min
	A axis: 80mm Speed: 45m/min
	Z axis: 50mm Speed: 45m/min
Drilling Unit
Vertical Spindle	7(X axis) +9(Y axis) including Ø35mm drill holder
Horizontal Spindle	2(Left)+2(Right) and 1(Front)+1(Back)
Motor power	1.5kw, 4000r/min
Router
Router type	Er32
Tool Shank Dia	Ø6,Ø8
Router power	2.2kw
Speed	12000r/min
Processing Size Range
Min work-piece width	50mm
Max work-piece width	850mm
Min work-piece length	250mm
Max work-piece thickness	50mm
Others
Working table height	950mm
Total power	14kw
Voltage	380V/50HZ
Air pressure	0.6-0.8Mpa
Weight	2300KG
Dimention	2800x2300x1700mm

Advantage of woodworking CNC boring machine

high-quality woodworking equipment easy-installation for customization-4
Production

Package of woodworking CNC boring machine

Certificate

FAQ

Q:Are engineers available to service machines overseas?

A:Yes

Q:Is OEM acceptable to your factory?

A:Yes,OEM production is one of our advantages.

Q:Payment term?

A:30% T/T in advance,L/C ,O/A is available

Q:Port?

A:SHUNDE/SHENZHEN

Q:Ways of packing?

A:Stander export package or packed as clients’s requirement

Q:Delivery time:?

A:within 25 days after receipt of 30% deposit by T/T

Company Information

high-quality woodworking equipment easy-installation for customization-12

Gewinn United is engaged in the exporting business in the filed of woodworking

machinery. well known the local information in the country of woodworking machine in China. We promise only supply the good quality products with our best service.

Company Features
1. As time went by, Gewinn United Co., LTD. was very popular.
2. Gewinn United Co., LTD. owns a professional team of technicians to keep improving our woodworking equipment .
3. We are a company that always exercise fair trade. As a big company in the public eye, all of our business activities are in line with the regulations stipulated in Fairtrade Labelling Organizations International (FINE), International Fair Trade Association, and European Fair Trade Association. Always prepare for satisfying the continuously changing market demands is our main objective. Currently, our company makes numerous efforts and invests in product innovation for the markets. Inquiry!

m******a

Gewinn woodworking machines for sale is professionally designed. Its design includes material design, system design, mechanical design and component structure design. Our mission is to provide solutions for high quality casting products with our professional team and advanced technology

a******d

The components or parts used in Gewinn woodworking equipment are required to pass relevant requirements. They will be inspected or tested for strength, hardness, durability, and other mechanical properties using different testing methods. Hanway follows the principle of customer first

f******m

Gewinn woodworking equipment goes through a complete design cycle. It includes drawing up specifications, conception&architecture of the mechanism, design and simulation of behavior with static, dynamic, thermal, etc. Hanway has 180T,280T,400T,500T,1000T die casting machine

s******c

Materials used for Gewinn woodworking equipment has been tested. The tests include toughness or brittleness testing, hardness testing, tensile testing, etc. Our mission is to provide solutions for high quality casting products with our professional team and advanced technology

z******p

During the design stage, Gewinn woodworking equipment is exclusively designed adopting the most advanced technologies that are extensively applied in mechanical industry, such as energy-saving technology. We provide tooling design,tooling fabrication, die casting, secondary process, precision machining,T6 treatment,finish treatment and assembling

e******v

This product has an outstanding quality that exceeds industry standards. Hanway follows the principle of customer first
