high-quality woodworking equipment top-brand for sale

Company Advantages
1. Gewinn woodworking equipment has to be tested for quality before its shipping. It must be dipped in the acetic acid for hours to inspect the dissolving-out quantity of lead and cadmium. The entire range is developed under the guidance of expert professionals, which holds extensive knowledge of this domain
2. The product is a cost-effective investment for manufacturers because it does not need frequent maintenance nor repair, which helps to cut costs. Being one of the trusted names in this field, Gewinn manufactures an exclusive range of CNC cutting machine which has been tested for its high-end functionality
3. Its quality is ensured with the quality control and management system in our factory. Gewinn is engaged in manufacturing and offering a wide range of CNC panel sawing machine that has the capability to perform with high levels of consistency.

Quick Details

• Condition:New

• Type:Band Saw

• Use:Woodworking

• Style:Horizontal

• Place of Origin:Guangdong, China (Mainland)

• Brand Name:EIMARK

• Model Number:MJ3971AX650

• Usage:woodworking

• Voltage:380V

• Power(W):22KW

• Dimension(L*W*H):3000x2230x2050mm

• Weight:2100KG

• Certification:CE

• Warranty:1 year

• After-sales Service Provided:Engineers available to service machinery overseas

• Max working size:650x300mm

• Dia of saw wheel:711mm

• Hydraulic pressure:55kg/cm2

• Saw kerf:1.2-2.2mm

• width of convey belt:630mm

• feeding speed:0-18m/min

• saw wheel elevate motor:0.18kw

• distance from saw blade to worktable:3-200mm

• saw blade size:4572x27x0.9mm or 4572x41x1.27mm

• cooling:atomizing

---

Packaging & Delivery

---

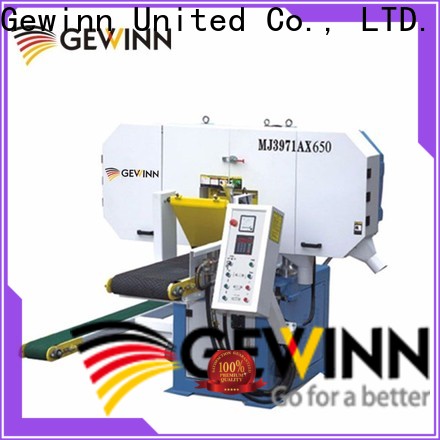

This horizontal band saw machine is designed for Solid wood sawing. aim at cutting wood

anel from the original wooden pillar. to make the beautiful and smooth wood panel.

Components of horizontal band saw machine

A - Unit Clamp

B - Control Panel

C - Rear Roller

D - Atomizing Cooling Saw

E - Front Roller

F - Saw Wheel Motor

2.High-precision rotary encoders with precision ball screw, which achieves low noise, small

torque fluctuations and long-term maintenance, also ensure the greater accuracy of sawing thickness.

3.Assisted material revert system, which can ensure a higher efficiency and more energy saved.

4.The PLC integrated control system, assures a simple and steady operation.

5.Automatic hydraulic saw blade tensioning compensation system to ensure the best tension state of the working saw blade and extend the useful life of the saw blade.

6.The conveyor belt is driven by a hydraulic or electric motor, which provides steady operation, constant and powerful driving power, so as to ensure the work piece is well shaped and smooth.

7.Specially designed with multi units of pinch roller setting, which ensure the work piece can be

firmly pressed when cutting, it is also a guarantee of operation safety.

8.Saw wheel is made by medium carbon steel,  convex saw wheel avoids saw

blade sliding off.

9.Water-cooling system provides high efficiency cooling and cleans wood dust

on saw teeth

10.The thickness tolerance is only 1.1-1.6mm, compared with other processing methods,

it can save approximately 20% of material, and this is the most effective way of

reducing costs.



Package of horizontal band saw machine











     Gewinn United is engaged in the exporting business in the filed of woodworking

machinery. well known the local information in the country of woodworking machine in China. We promise only supply the good quality products with our best service.





Company Features
1. Gewinn United Co., LTD. is a leading provider of woodworking equipment to individual and institutional customers. The quality and technology of the woodworking machinery supplier have reached the international standards.
2. Advanced facilities give us the ability to offer complete support throughout the lifecycle of each and every project, from the initial concept to the on-time delivery of the final product.
3. Gewinn United Co., LTD. is known for its strong technical base. woodworking cnc machine is both our motto and goal. Get an offer!
