hydraulic finger joint cutter high-performance for wooden board

Gewinn finger joint line, from residual wood to high class product

Build process

Finger jointing is recognized as the most stable method of wood length joints. And if you require this technology, Gewinn will offer you solutions in highest cost performance with quality/ price/ service mixed.

hydraulic finger joint cutter high-performance for wooden board-1

Why us?

1.Factory since 1988,over 30 years focus on finger joint technology , hundreds of manufactures are making profits with our finger joint lines.

2.High operational capacity, process speed up to 40m/min, over 19km/8h-shiftr.

3.Our finger joint can process shortest residual wood of 8cm long, maximum your production, minimum your cost.

4. CE certificate

hydraulic finger joint cutter high-performance for wooden board-2

finger joint shaper series:

hydraulic finger joint cutter high-performance for wooden board-3

MXB 3515A (S) Hydraulic drive,for hard and thick wood finger joint shaping.

--With glue spreader, auto gluing reduce labor manual work.

hydraulic finger joint cutter high-performance for wooden board-4

hydraulic finger joint cutter high-performance for wooden board-5

---With top and Bottom scoring saw, to prevent any damage on the edge when finger shaping.

Specification

Type	MXB3515A(S)
Size of working table	500×650mm
Shaping thickness	20-150mm
Max.working width	450mm
Shaper spindle power	11kw
Hydraulic system power	2.2kw
Hogger power	4kw
Top&Bottom scoring saw power	0.75kw×2
Shaper spindle speed	5600rpm
Shaper spindle speed	Φ50mm
Total motor power	18.7kw
Overall dimensions	3100×1650×1800mm

About factory

hydraulic finger joint cutter high-performance for wooden board-6

A. Finger Jointing Line assembly and testing workshop

B. Finger Joint Shaper assembly and testing workshop

C. Finger Joint Composer assembly and testing workshop

Other options

MXB3515 hydraulic drive , for hard and thick wood finger joint shaping.

Type	MXB3515
Size of working table	500×650mm
Shaping thickness	20-150mm
Min.working length	100mm
Max.working width	450mm
Hogger spindle diameter	Φ30mm
Shaper spindle diameter	Φ50mm
Saw Blade spindle speed	2840rpm
Shaper spindle speed	5600rpm
Shaper spindle power	11kw
Hydraulic system power	2.2kw
Hogger power	4kw
Total motor power	17.2kw
Overall dimensions	2000×1650×1500mm

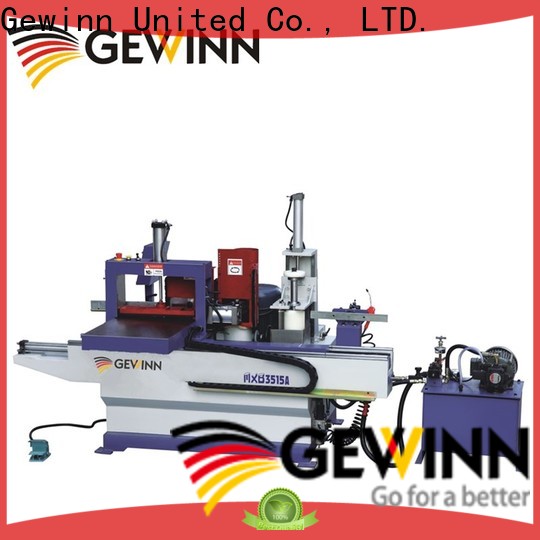

MXB3515A hydraulic drive , for hard and thick wood finger joint shaping.

--With glue spreader, auto gluing reduce labor manual work.

hydraulic finger joint cutter high-performance for wooden board-8

hydraulic finger joint cutter high-performance for wooden board-9

Type	MXB3515A
Size of working table	500×650mm
Shaping thickness	20-150mm
Min.working length	100mm
Max.working width	450mm
Hogger spindle diameter	Φ30mm
Shaper spindle diameter	Φ50mm
Hogger spindle speed	2840rpm
Shaper spindle speed	5600rpm
Shaper spindle power	11kw
Hydraulic system power	2.2kw
Hogger power	4kw
Total motor power	17.2kw
Overall dimensions	2200×1650×1600mm

Operation video

According production capacity need, we have full automatic finger joint line and semi-automatic finger joint line series,
