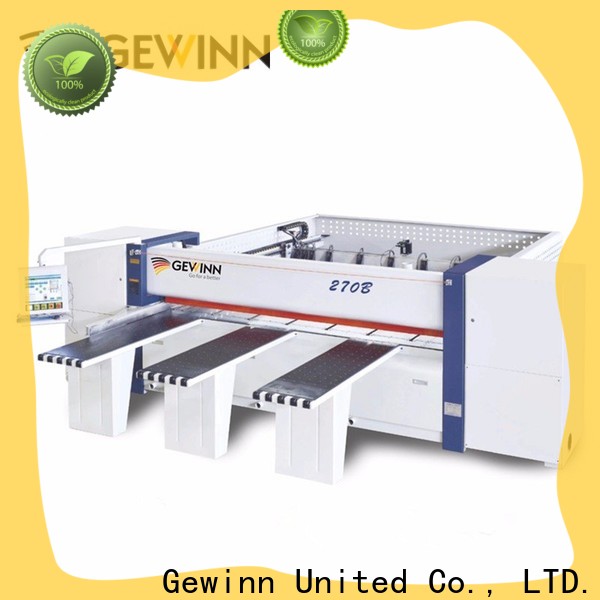

quality woodworking equipment for tenoning

Quick Details

Condition:New
Type:Table Panel Saw
Use:Woodworking
Style:Horizontal
Place of Origin:Guangdong, China (Mainland)
Usage:wood panel sawing
Voltage:220V/380V
Dimension(L*W*H):4900*5590*1525mm
Weight:3900kg
Certification:CE
Warranty:1 year
After-sales Service Provided:Engineers available to service machinery overseas
Control Screen:Taiwan ASK LCD
PLC:Japan Mitsubishi
Main saw motor:Italy motor
Scoring saw motor:Taiwan quality motor
Electronic protect:Taiwan AC contactor
Machine frame:one-stop finish
feeding part1:Japan servo motor
feeding part2:Switzerland gear reducer
feeding part3:high precision limit switch
warranty:1 year

Packaging & Delivery

Packaging Details:	standard packing
Delivery Detail:	within 30 days

quality woodworking equipment for tenoning-1

Gewinn United is engaged in the exporting business in the filed of woodworking

machinery. well known the local information in the country of woodworking machine

in China. We promise only supply the good quality products with our best service.

Specification

HI-SPEED COMPUTER PANDEL SAW	HH-PRO-8-HC
Max cutting depth	100mm
Max cutting length	2650mm
Main saw blade	Φ405mm
Main saw spindle	Φ30mm
Speed of main saw	4800r/min
Scoring saw blade	Φ180mm
Spindle of Scoring saw blade	Φ30
Speed of Scoring saw blade	6500r/min
cutting speed	0-50m/min
return speed	80m/min
Main saw motor	20HP (25HP for option)
Saw carriage motor	3HP
Blower motor	5HP
Auto-feeding system	2kw AC servo motor
Auto-feeding speed	0-60m/min
Working air-pressure	7kg/cm2
Table height	920mm
Dimension (LWH)	490055901525mm
Net weight	3900kg
Gross weight	4500kg

Detail Parts Introduction

1.Taiwan ASK LCD control screen

quality woodworking equipment for tenoning-2

2.Japan Mitsubishi PLC

1)Famous brand insure high quality

2)Quick reaction

3)easy control

quality woodworking equipment for tenoning-3

3.Feeding parts

1) Japan AC servo motor.fast and powerful

2) Switzerland Gear reducer

quality woodworking equipment for tenoning-4

3) Limit Switch.insure high accuracy located

quality woodworking equipment for tenoning-5

4) German gear track.stable working without slip.

quality woodworking equipment for tenoning-6

4.Sawing device

1)main saw blade. control by Italy motor

quality woodworking equipment for tenoning-7

2) Scoring saw blade. control by Taiwan quality motor

quality woodworking equipment for tenoning-8

5.Holding griper. pneumatic unit. can gripe the panel steadily

quality woodworking equipment for tenoning-9

6.Copper wheel.durable working

quality woodworking equipment for tenoning-10

8.Air-floating table with steel ball.convenience to move the panel

quality woodworking equipment for tenoning-11
