Your reliable woodworking machinery supplier.
Condition:New
CNC or Not:CNC
Motor Type:Delta
Spindle Speed:12000r/min
Place of Origin:Guangdong, China (Mainland)
Model Number:SKD-85
Voltage:380V 50HZ, 380V/50HZ
Power(W):14kw
Weight:2300kg
Dimension(L*W*H):2800x2300x1700mm
Certification:ISO9001:2008
Warranty:1 year
After-sales Service Provided:Engineers available to service machinery overseas
Machine frame:Heavy duty
Processing:Horizonta & Vertical
Control system:German DB CNC system
Processing data:Support CAD imput
Servomotor:Delta
Electric appliances:Schneider & Taiwan imported
Pneumatic device:Taiwan imported
Moving guide:Taiwan high precision guide
Delivery Detail:within 35 days after 30% downpayment, 70% before delivery
| Packaging Details: | EPE packing with metal plate in the bottom |
|---|

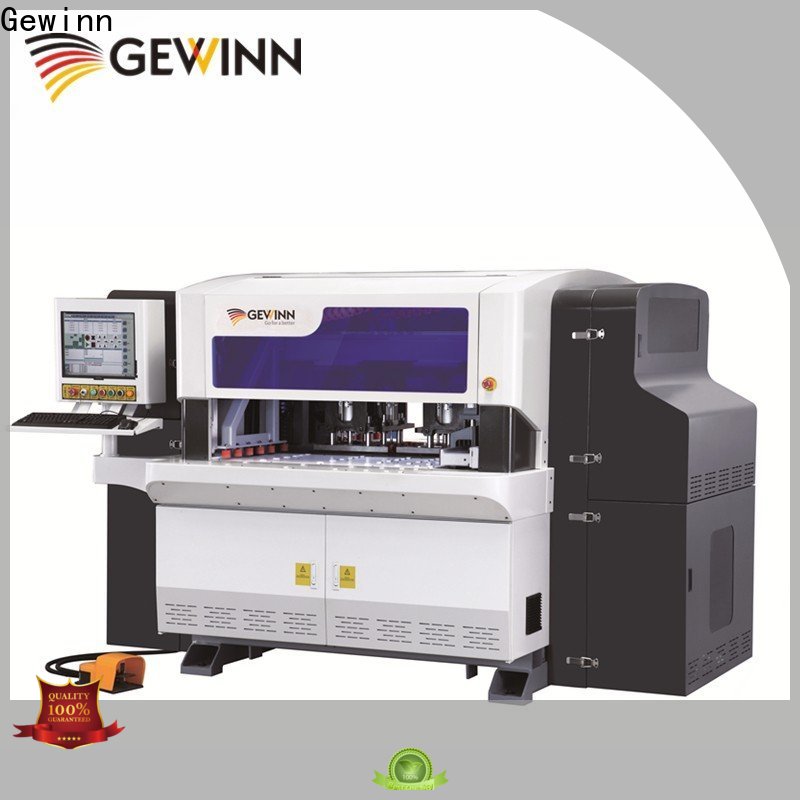

This automatic drilling machine is applicable for drilling for cupboard doors,furniture industry, decorative material,cabinet door,computer table, cabinets and panels,plastic fabrication,model,art crafts,musical instrument, plate.with computer control and automatic feeding & drilling,easy for operating.
Model Details of automatic drilling machine
Benefits you can count on
-Equipped with German CNC control system and integrated CAM software can make image edit for the work pieces, generating NC program directly for processing.
-Processing files can be uploaded automatically by scanning bar code, generating NC program for processing.
-Able to connect with management software, achieve auto operating with digital control.
-Advanced CNC program designed, assure feeding device and drilling device are working synchronously during processing, ensure efficient processing.
-Equipped with German CNC system. Image-Text inputting interface, CAD drilling data, ensure easy control. Management software can be customized upon customers’ producing requirements.
-Driving system: Equipped with Delta servomotor, imported gear and rack, Taiwan strong linear guide and carriage, with oil supplying device for dust removing and lubricating.
-High flexibility due to the proven exchangeable drilling block system. Equipped with Auto side aligning device which is driven by brake motor and plus probe for work piece movement controlling, adapting to the positioning requirement of different work piece width.
-Equipped with auto clamping and feeding device, ensure automatic drilling by processing program.
-Auto pressing device: The pressing and loosening of the work pieces are controlled by computer program, in order to satisfy the feeding and drilling.
Parameter of automatic drilling machine
Working stroke & Speed | X axis: 1250mm Speed: 45m/min |
Y axis: 1490mm Speed: 45m/min | |
A axis: 80mm Speed: 45m/min | |
Z axis: 50mm Speed: 45m/min | |
Drilling Unit | |
Vertical Spindle | 7(X axis) +9(Y axis) including Ø35mm drill holder |
Horizontal Spindle | 2(Left)+2(Right) and 1(Front)+1(Back) |
Motor power | 1.5kw, 4000r/min |
Router | |
Router type | Er32 |
Tool Shank Dia | Ø6,Ø8 |
Router power | 2.2kw |
Speed | 12000r/min |
Processing Size Range | |
Min work-piece width | 50mm |
Max work-piece width | 850mm |
Min work-piece length | 250mm |
Max work-piece thickness | 50mm |
Others | |
Working table height | 950mm |
Total power | 14kw |
Voltage | 380V/50HZ |
Air pressure | 0.6-0.8Mpa |
Weight | 2300KG |
Dimention | 2800x2300x1700mm |
Advantage of automatic drilling machine
Production
Process
With CAD program, can input or make drawing in the machine
With grooving function, for cabinet side board installing
With Precise & Clear drilling
Package of automatic drilling machine
Certificate
Q:Are engineers available to service machines overseas?
A:Yes
Q:Is OEM acceptable to your factory?
A:Yes,OEM production is one of our advantages.
Q:Payment term?
A:30% T/T in advance,L/C ,O/A is available
Q:Port?
A:SHUNDE/SHENZHEN
Q:Ways of packing?
A:Stander export package or packed as clients’s requirement
Q:Delivery time:?
A:within 25 days after receipt of 30% deposit by T/T
