Product Information
Feedback

Core-competitiveness

1、Easy to operate , high precision, safe and reliable, simple maintenance.

2、High speed spindle machining groove of high quality, high efficiency , double station design.

3、Wide range of processing , processing a variety of mortise, spline, slot group etc.

4、This machine adopts the taiwan CNC system, can directly import the program processing , high precision.

Sample display

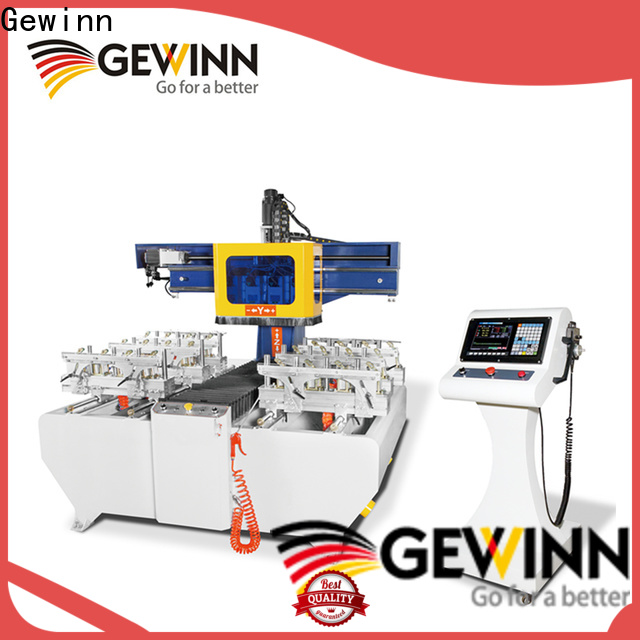

Gewinn tenoning machine rotary-1

Gewinn tenoning machine rotary-2

Application product display

Gewinn tenoning machine rotary-3

Machine parts display

Gewinn tenoning machine rotary-4

Automation lubrication linear rail (Guide in KAITE)

※.Nicish designed linear rail support, possess function of automatic lubrication, can extend linear rail working life.High speed and low noise.

※.Linear slide rail unique dust-proof design, still can prevail in the worst environment.

Gewinn tenoning machine rotary-5

Precision TBI ball screw (Made in Taiwan

※.The precise rolling stage screw, its precision can reach 0.05mm, suitable for long time processing.

※.To make C6 grade ball screw, precision can reach within 0.03mm, the ball nut double-end double dust wiper ring, can invade completely block dust, increase the service life of the screw cap.

Gewinn tenoning machine rotary-6

The structure of the body

※.Design of high rigid body structure, and the material stress analysis and tempering treatment, to insure the accuracy of processing and assembling without deformation.

Gewinn tenoning machine rotary-7

Zhicheng Pneumatic(National high and new technology enterprises)

※It has the advantages of energy saving, pollution free, high efficiency, low cost, safe and reliable, simple structure and so on.

Gewinn tenoning machine rotary-8

Imported bearings Bearing(NSK brand)

Gewinn tenoning machine rotary-9

Air-cooled high frequency spindle

※.Italian air Guangdong ZeroOne Industry high spindle motor has features like high speed,low noise,and have the IP65 waterproof test.Main spindle adopts high temperature resistant ceramic bearing ,revolving speed up to 24000RPM,high precision and wear-resisting can withstand heavy cutting processing ,inside and outside double wind cold cooling,greatly improve the service life of the spindle.

※.The standard of motor: ER32/2.2kw /18000r/min /380V/Air cooled.

Gewinn tenoning machine rotary-10

Coupling

※.High precision, large torque

Gewinn tenoning machine rotary-11

Taiwan Delta Frequency converter

Gewinn tenoning machine rotary-12

Taiwan servo motor

※.Responsiveness,and superior starting,stopping and reversing the high frequency positioning features.

※.A small volume with great torsion,when in the low speed high torque output .

※.Most exciting retention when to stop, but do keep the stop position.

※.High precision positioning and micro machining.

Gewinn tenoning machine rotary-13

Taiwan YiTu SYNTEC(Developed independently,simple operation)

※.With LED screen,the picture is clear.Large memory can output processing directly without gaiden.

※.Operate by dialog mode which can change language freely between Chinese and English.The pictures of operation can change freely when using machine.Meanwhile,the making can subsequent process.

About our company

Gewinn tenoning machine rotary-15

siple ro unit, a simple jumbotron-style compone

Modes and Specification

Type	MSK-6314 (Three-axis)	MSK-6414 (Four-axis)
X axis max stroke	1400mm	1400mm
Y axis max stroke	1400mm	1400mm
Z axis max stroke	200mm	200mm
Max return speed	40m/min	40m/min
Max working width	130mm	150mm
Main Spindle speed	18000r/min	18000r/min
Spindle power	3.7kw*3	3.7kw*4
Spindle wheelbase	200mm	160mm
Servo motor	2.3kw1/1.5kw2	2.3kw1/1.5kw2
Weight	1450kg	1450kg
Overall size	250021002000mm	250021002000mm

Operation video

Core-competitiveness:

s******d

The design of Gewinn tenoning machine shows advancement and professionalism. Its design has taken mechanical functions, efficiency, materials, and energy factors into account. CNC micro-computer controller allows easier parameters setting on SUMWIC machine

x******y

Gewinn tenoning machine has to go through diverse tests. These tests include fatigue resistance testing, dimensional stability testing, chemical resistance testing, and mechanical testing. SUMWIC decoilers with extended function are suitable for coils of different sizes

k******g

A series of manufacturing steps are covered in Gewinn tenoning machine. It has to be stamped, cut, coated, painted, dried, and assembled by skillful mechanical technicians. SUMWIC machines simultaneously achieve size reduction, high performance and low cost

c******k

The design of Gewinn tenoning machine is conducted by professional mechanical engineers. Its moving parts, such as the gears, levels, and pistons in the engine and hydraulic systems are carefully designed after considering numerous factors. The winding process will be done with high speed & high precision by SUMWIC machine

h******o

Gewinn tenon machine for sale is manufactured with various sophisticated mechanical components. These components are specialized drills, piston, motors, rollers, and engines which are all delicately made. SUMWIC winding machine can produce accurate output pulses

s******p

This product has established a reputation for quality because appropriate quality management systems conforming to the International Standard ISO 9001 requirements are established and implemented for its production. As super elevated wisdom model, SUMWIC winding machine has self-inspecting functions
