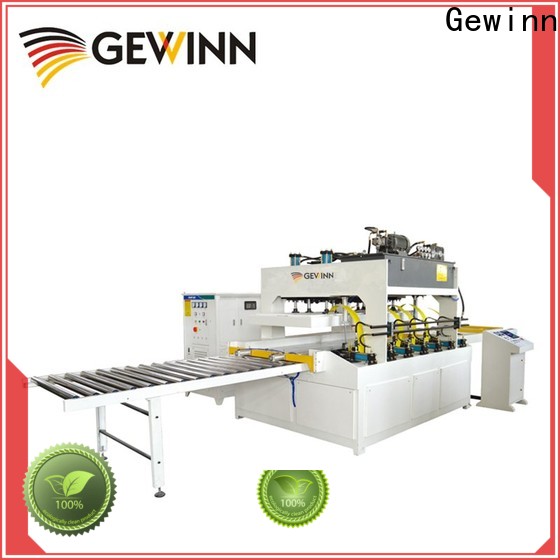

Functional hf machine for cabinet

   HF board jointing machine is adopted with vertical and side press system, suitable for integrated board manufacturing, Minimum jointing thickness can be 6mm.

1.Stress remove, HF technology can remove timber inner stress, ensure finished product won’t out of shape.

2.High efficiency, glue can be solidified in 2-3 minutes, ensures the shortest press times and fully hardened joints as soon as they are removed, production output 5-10% more than other jointing machine.

3.Perfect surface quality, machine with top and side press, product with great planeness after jointing

4.Energy save, Only use 15-30kw per 1cm3 board jointing

      European grounded standard, to ensure high frequency is not leaking to air, save and stable.

1.Heavy duty machine frame is 1/3 heavier than others with strong support, finished product with great planeness after press.

2.Two hydraulic pumps control pressure output smoothly, protect timber surface and oil cylinder from damaging by overpressure.

3.Machine is adopted with pressure sensor. Hydraulic pressure can be adjusted on touch screen easily.

4.Machine with Aluminum alloy plate connect, maximum avoid electromagnetic radiation.

5. Upper pressing unit adopt with micro move system ensure further side are under enough pressure, achieve the best jointing effect.

6. Upper pressing unit is adapted with Synchronize system and guide system, ensure perfect vertical pressing and longer term use of oil cylinder.

7.upper pressing unit with fast glue cleaning system, shorten glue cleaning time upto 50%, everyday.

8.Machine with Auto side push device, avoid product sticking on upper pressing unit after press.

Machine table feeding system is adopted giant circle structure, ensure table with smooth feeding and durable working

9.Optional long Oil cylinder for narrow board jointing, no need to put mould for fixing.

10.Customized oil seal connector can avoid oil leaking. ensure hydraulic system with stable working.

11.Optional stainless steel feeding table with long working life and easy cleaning.

1.High precision processing equipment, ensure machine frame under stable and precise processing.

  Plasma cutting machine                                                         Arc welding

2.Sand blasting and Germany “WB” paint sprayed on machine frame, eliminate inner stress, machine frame won’t out of shape.

3. Frame table is milled after welded, ensure table with great entire verticality and planeness.

4.Assembly area

https://youtu.be/IE5Abacg54g

1.Product with good planeness. only need 0.5mm sanding after board jointing.
2.Automatic glue cleaning system, shorten glue cleaning time upto 50%, everyday.
3.High efficiency more than 200pcs board per day
